For Strange Ultra Case Pinion Support
N1950A / N1950AD / N1953A
With 3/8″-24 sensor holes – N1950A & N1953A manufactured 6/23 and later
With 3/8″-24 sensor holes – N1950AD manufactured 12/23 and later
Fits Strange 28 spline yoke

For 35 spline yoke – See U1614-TUC

Design
Provides driveshaft speed information to data acquisition systems
Offers high resolution due to 40 tooth trigger wheel
Produces smooth and easy to read graphs when comparing to other data

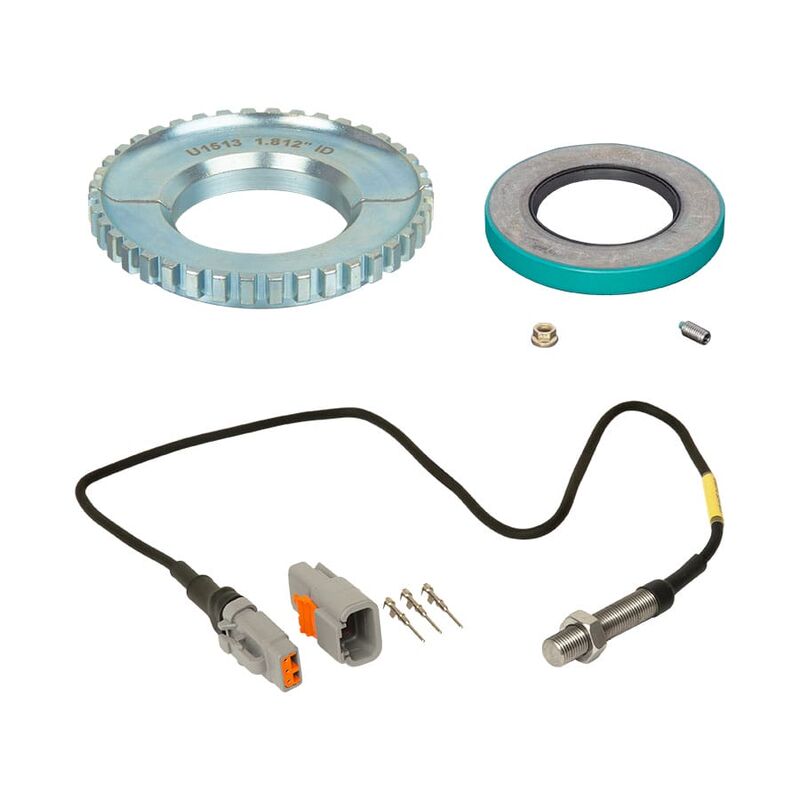

Hall Effect Sensor Assembly
• High precision zero speed design
• Industry standard 3/8″-24 fully threaded body
• Stainless steel housing – more durable than aluminum bodies
• Proven reliability in top fuel cars
• Made in the USA
• Requires 4.5-26 VDC supply voltage
• 0-15kHZ operating frequency
• Terminated with Deutsch DTM plug
• Includes mating Deutsch DTM receptacle with pins
• One jam nut provided with sensor

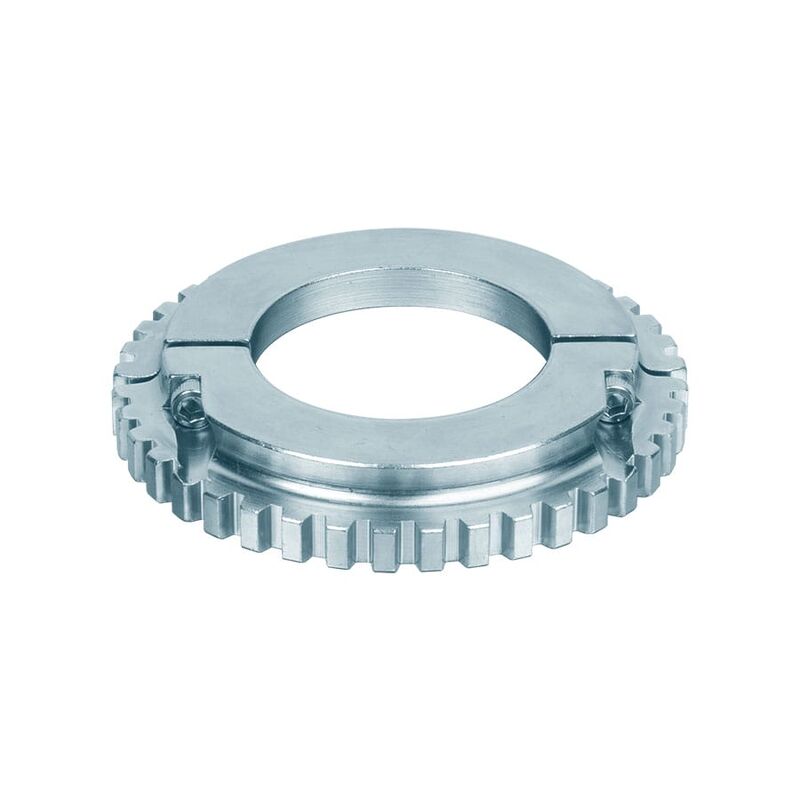

Trigger Wheel
• High resolution 40 tooth trigger wheel
• Plated for corrosion resistance
• Split design with SHCS bolts

Pinion Seal
• Low drag design

Additional Components
• Nylon tipped stainless steel set screw
• Flanged locking nut
