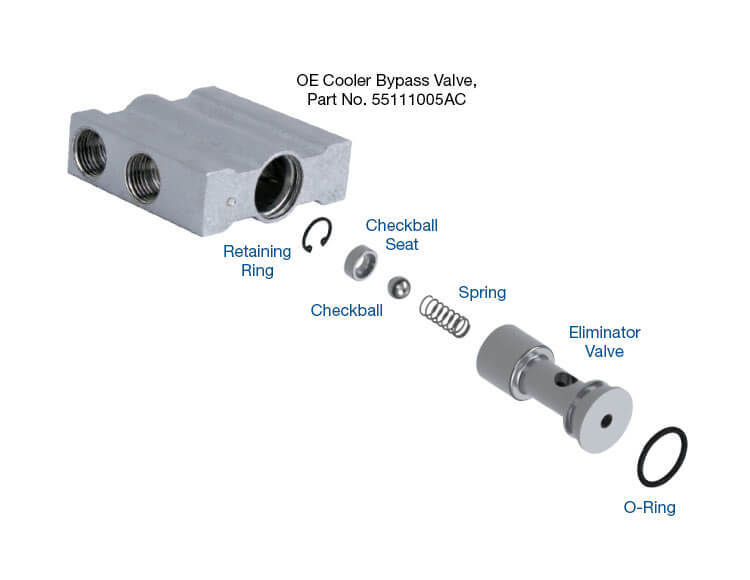

The OE thermal bypass valve in listed transmissions is known to get stuck in recirculation mode, only allowing ATF to circulate in the transmission and not allowing flow through the cooler. As the vehicle gets up to operating temperature, this can result in transmission overheat. Sonnax thermal bypass eliminator kit 72760-02K allows reuse of the OE cooler bypass valve by removing the OE thermal bypass valve and replacing it with a valve assembly that permanently allows flow through the cooler to prevent transmission overheat. The Sonnax design includes a pressure bypass feature that allows for bypass if the cooler is blocked, also preventing transmission failure.

Drop-in Zip Valve™ parts install quickly and easily into OE cooler bypass valve
Maintains the OE functionality of pressure relief to prevent transmission failure due to high pressure or cooler blockage
Less expensive solution than replacing the OE cooler bypass valve

Learn More About Zip Valve™ Drop-In Repairs
