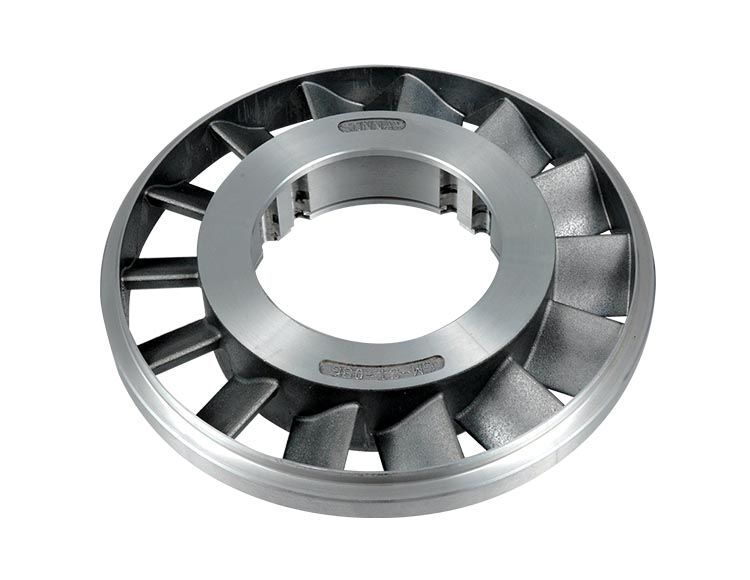

The versatile GM 245mm core allows builders to assemble a high performance converter with a variety of stall speeds and torque multiplication rates. The weakest part of the converter is the one-way clutch. The Sonnax stator GM-ST-086 utilizes the same one-way clutch components as the 8” Opel (3.25” bore) stator and can replace the OE 245mm stator when assembling Sonnax non-lockup performance converter kits. This feature allows the use of Sonnax mechanical diodes or sprag cartridges when building high performance converters based on the GM 245mm core.

“086” GM 245mm blade profile
Accepts Sonnax mechanical diodes or sprag cartridges
High stall speed
Low stall torque ratio (STR)
