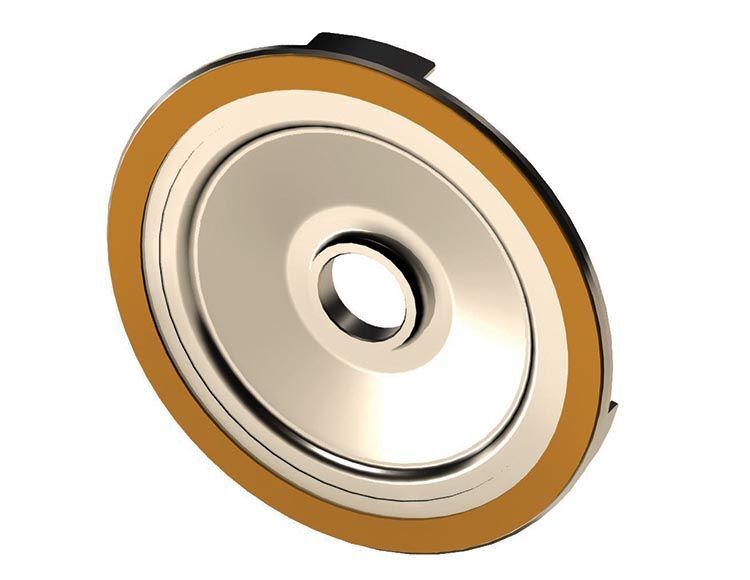

The AX4S, AX4N (4F50N) single clutch converters have a piston that is prone to cracking due to manufacturing flaws. A cracked piston will not only lock up improperly, but will shave material off the OE friction ring. This loose friction material will contaminate the whole transmission. The Sonnax FD-DA-19PBF, a fully machined forging, is a replacement bonded clutch plate that corrects this OE problem. Friction ring B66300HTL is already bonded to the Sonnax plate.
Replaces the OE piston that is prone to cracking
Machined from a steel forging
Increased wall thickness for greater stiffness
Bonded 9.500" x 8.250" x .066" friction ring
