OE end plugs are designed to prevent critical pressure loss by capping the bore while also functioning as a spring or valve stop. Repetitive spring motion, valve impact and fluid pressure variations cause wear between the end plug and bore mating surface, allowing vital pressure to escape the circuit.

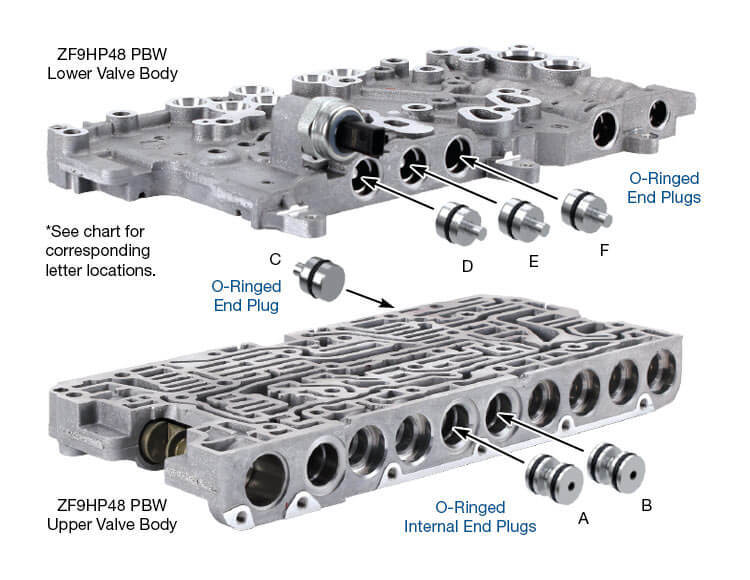

Sonnax O-ringed end plug kit 85740-01K services Chrysler 948TE, Honda/Acura, 9-speed and ZF9HP48 valve bodies. The two individual bores in PBW (Park By Wire) and one bore in PBC (Park By Cable) that use internal end plugs to isolate valves from solenoids are serviced by double O-ringed internal end plugs, which replace damaged OE plugs and restore pressure containment to the bores. The kit also includes single O-ringed end plugs to service the four 13mm bores in PBW and two 13mm bores in PBC valve bodies.

Prevents loss of critical pressure
Services all 6/3 (PBW/PBC) bores where end plug sealing is critical for proper function
Minimal end plug-to-bore clearance with added O-ring for positive seal
#8-32 Threaded bore in end plug outboard face aids installation and removal
Drop-in Zip Valve™ parts install quickly and easily

Learn More About Zip Valve™ Drop-In Repairs
