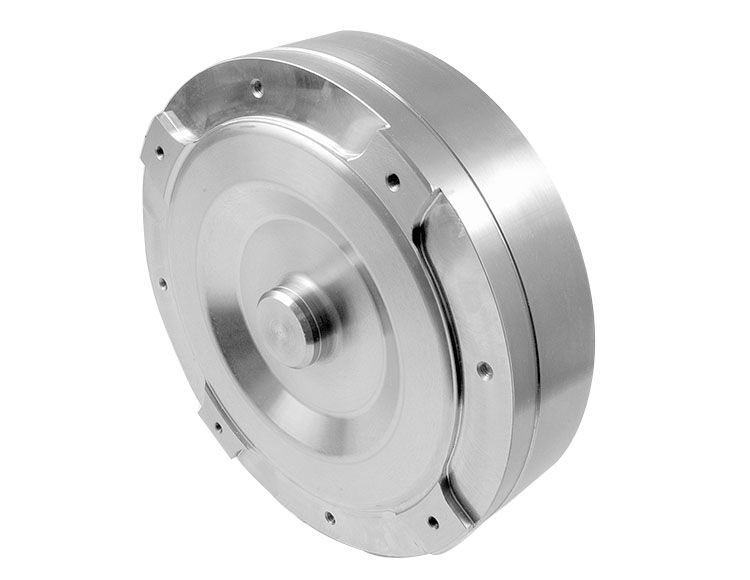

CH-CC-6 is a modified version of CH-CC-4 and is used in 10-3/4" lockup converters with '96-later 5.9L engines. Since the engine external balance weight is mounted on the flexplate in this application, CH-CC-6 has undercuts to allow clearance for the balance weight. The cover is furnished with no weights or ring gear and must be balanced after assembly.
Fully machined forging
Direct replacement
Integral stop to facilitate installation of the ring gear
Longer lip makes it easier to reuse impeller
