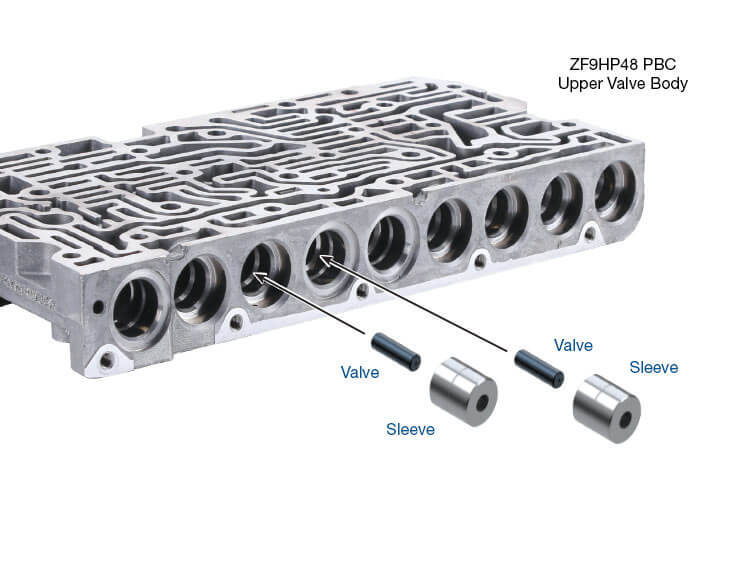

Chrysler 948TE, Honda/Acura 9-speed and ZF9HP48 transmissions are equipped with an aluminum sleeve for the A and F dog clutch plunger valve. This material is prone to wear from valve plunger reciprocation. Failure of this sleeve results in a variety of shift problems and solenoid codes. Sonnax A & F dog clutch plunger valve kit 85740-05K restores the correct hydraulic clearance and proper function of the assembly.

Hardcoat anodized aluminum valves combat premature wear
Highly wear-resistant sleeves increase service life
Drop-in Zip Valve™ parts install quickly and easily

Learn More About Zip Valve™ Drop-In Repairs
