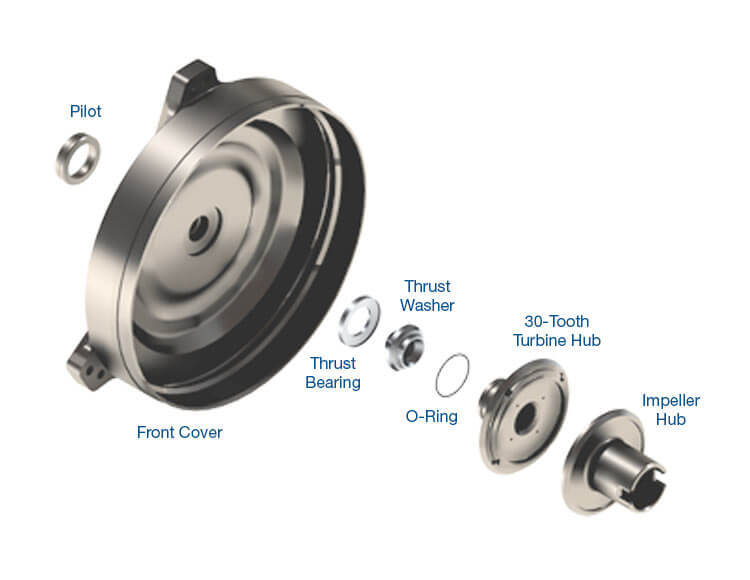

The GM 4L60-E transmission used the 298mm converter starting in 1992 and as late as 2004 in the Corvette. The large diameter and weight of this converter rob the drivetrain of acceleration power and throttle response. Sonnax 298mm performance converter kit GM-RK-18 adapts a GM245mm core for use in 4L60-E (298mm) applications, allowing converter builders to assemble high-performance 4L60-E converters with a variety of stall speed options.
The diameter of the finshed converter using the GM-RK-18 is 1.600" (40mm) smaller, which improves acceleration. The new robust forged cover has additional material on the flexplate mounting pads and rim to reduce cover flexing and ballooning during hard acceleration. This cover also incorporates universal features: three different flexplate bolt hole patterns and a weld on pilot for other GM applications.
The GM-RK-18 kit utilizes the OE GM 258mm damper assembly to isolate engine and road vibration and to protect the transmission downstream. Many other aftermarket performance converter kits offer pistons without dampers, which will compromise ride quality for street use and severely reduce transmission and converter life. Two damper assembly options are available with this performance converter kit: forged piston GM-DA-6P assembled with a used GM 258mm damper assembly or a complete GM 258mm piston/damper.
The GM-RK-18 kit is designed to fit either Sonnax stator GM-ST-082 and GM-ST-086 along with a sprag cartridge GM-CS-3 that fits the 4L60-E stator shaft spline. Instructions for cutting and welding the 245mm turbine to accept the turbine hub are included with the kit.

Improved acceleration and throttle response
Adapts the popular GM 245mm converter core
Includes heavy duty front cover
Fits 9.674" (245mm), 11.062" (281mm) and 11.500" (292mm) flexplate bolt patterns
Weld-on cover pilots for many applications
Chromoly steel turbine and impeller hubs

Required Piston Damper Assembly Parts

OPTION #1

GM-DA-6P Piston Plate
GM-RV-9 Rivet (100/bag)
S20300WC, B45300HTE or B45070HTE Friction Ring
GM 258mm Damper Assembly Core

OPTION #2

GM 258mm Piston/Damper Assembly

Required Stator Assembly Parts

CH-N-1 Thrust Bearing (2)
GM-CS-3 Sprag Cartridge
GM-ST-082 or GM-ST-086 Stator

Required OE Core Parts

GM 245mm Impeller
GM 245mm Turbine(requires machining)

Optional Assembly Parts

B78 Hex Head Screw (100/bag)
