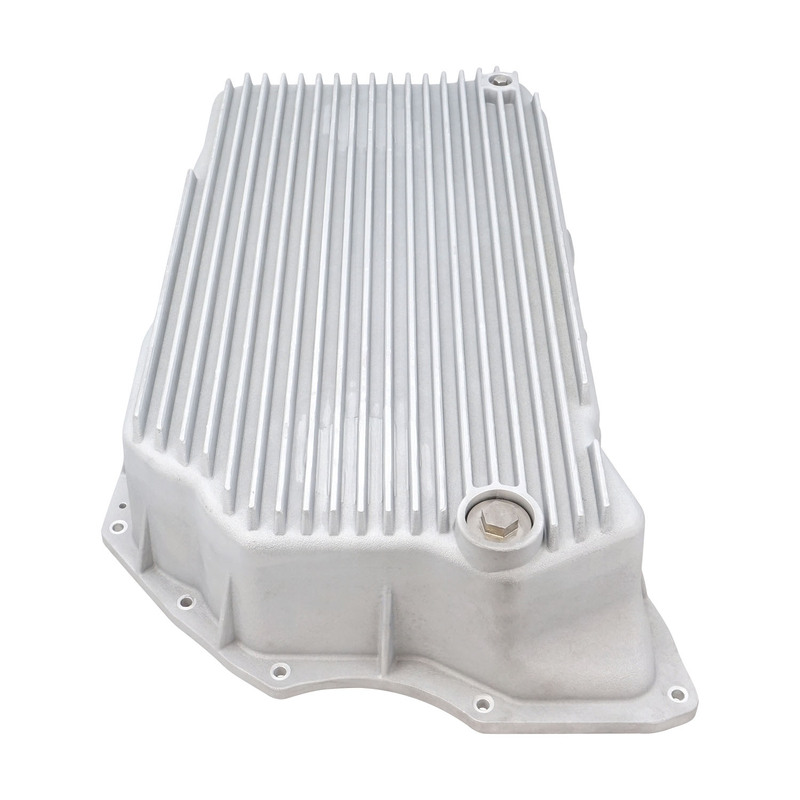

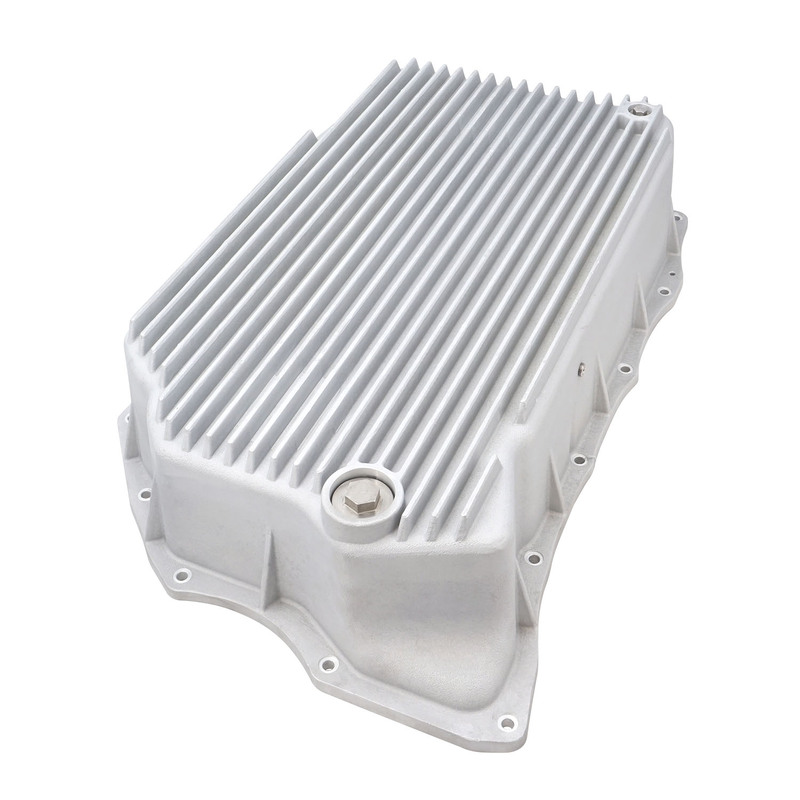

Deep Cast Aluminium Transmission Pan -Allison 10L1000

RTS' race series cast aluminium transmission pans are constructed from A356-T6 aluminium and are cast with thick internal and external fins, adding additional strength and increasing heat dissipation abilities.

Get the best protection and performance out of your 10L1000 by upgrading to the RTS Heavy-Duty Cast Aluminum Deep Transmission pan. These deep Pan Increases fluid capacity by a full gallon which lowers transmission fluid temperature and increases thermal stamina. The engineered design includes cast aluminum fins and heats sinks to improve heat dissipation. The external gussets provide extra support to the machined flange to increase overall robustness.

RTS includes a high-power Neodymium magnet-equipped billet 304 stainless steel drain plug with Viton O-ring seal and a 9/16’’ ORB Neodymium Magnetic Plug with Viton O-ring seals for the fluid level check port. These powerful magnets pull ferrous metals out of the fluid before they can do damage to the internals.
