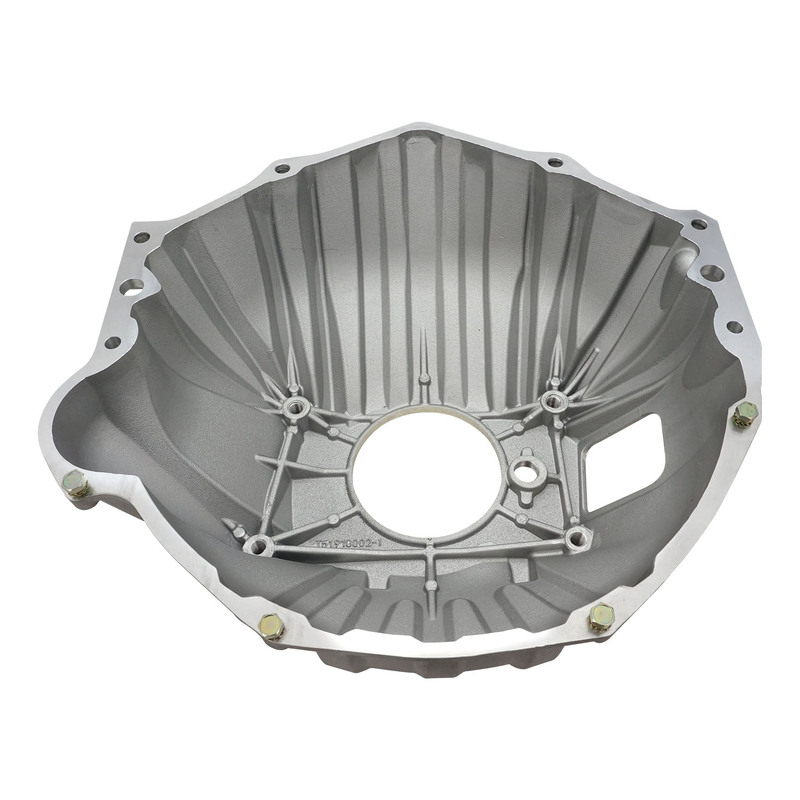

RTS’ replacement bellhousings are cast aluminium production style bellhousings built to Ford and GM specifications, ensuring you of a high quality product that’s right for the job. Some applications may require minor modifications for transmission clearance and mounting.

Features:

  • Lightweight cast aluminium design similar to the original equipment bellhousings
  • non-SFI rated option for projects that do not require a steel SFI rated unit
  • Lower cost, Not same as our RTS branded Bellhousing
  • A356-T6 cast aluminium
  • Designed for hydraulic and mechanical fork throwout bearing linkage
  • Bellhousing depth: 6.45 in
  • Clutch fork opening: 2.125 in x 3.3 in
  • Transmission bore diameter: 4.684 in
  • No hardware included
  • Fits SB & BB Chevrolet, will bolt to LS but has No top bolt hole provision

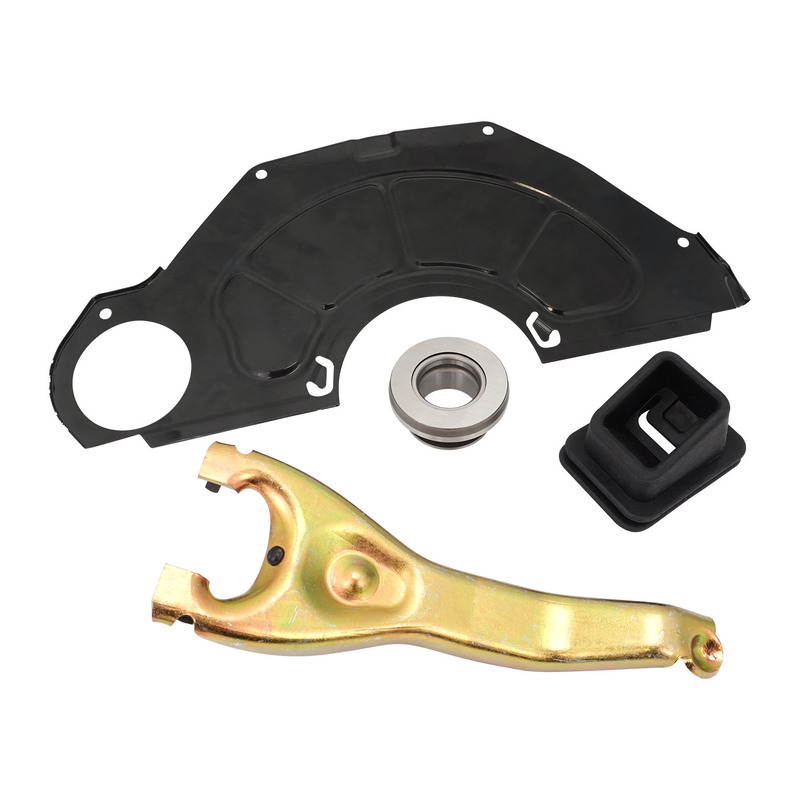

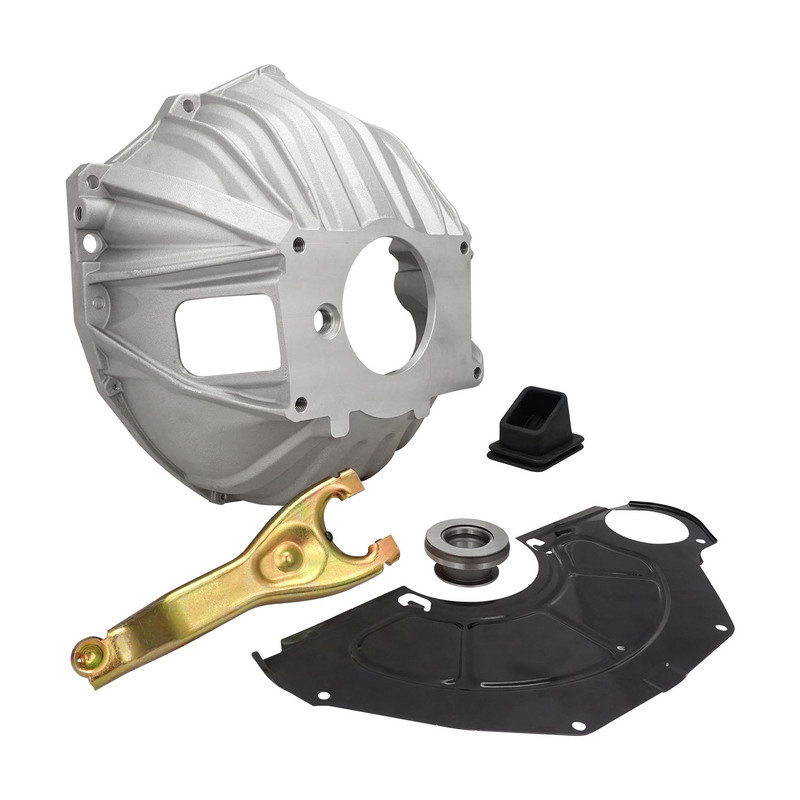

  • Kit includes: Thrust Bearing, Clutch Fork, Fork Pivot, Fork Boot, Inpection Plate / Dust Cover
  • Connects Chevy small and big block engines to transmissions utilizing the standard GM pattern such as the Muncie, Saginaw, Borg Warner T10 and Tremec TKO, and TKX transmissions

Note: Will not suit Holden V8 with GM/Chev bolt pattern due to starter position
