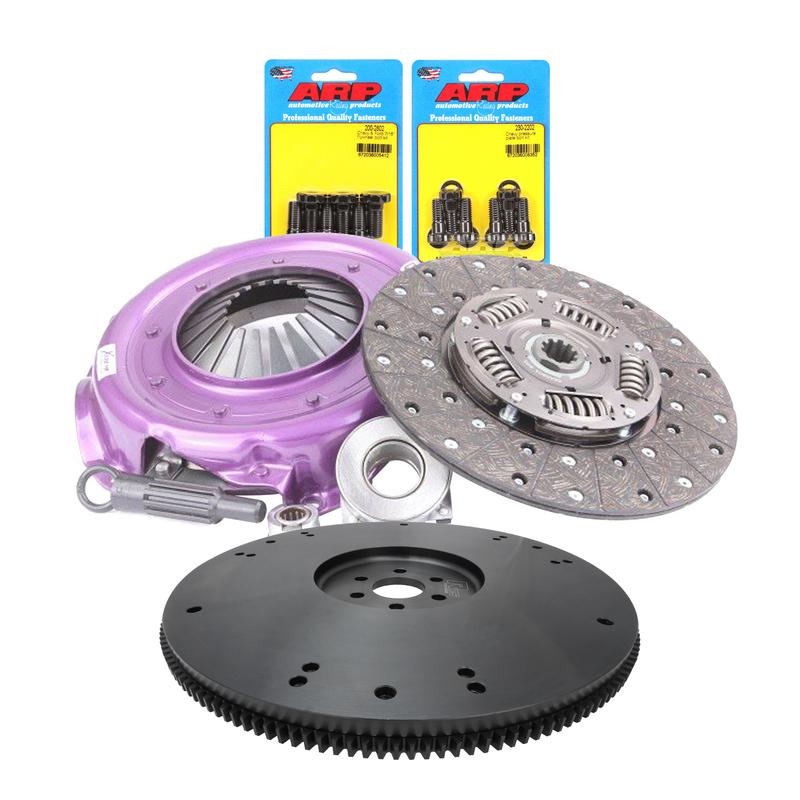

Ford V8 11" Billet Flywheel & 11" Clutch Assembly, Release & Pilot Bearings and ARP Bolts

Ford V8 11" Billet Flywheel & Clutch Assembly, Bolts, Release & Pilot Bearings and ARP Bolts Save $$ by purchasing a RTS Clutch package which includes all the items associated with completing the job sucessfully FLYWHEEL RTS Explosion Proof billet steel flywheels are designed from the ground up to deliver high performance results. Starting with CAD engineering and tested to limits far above the SFI-ratings, these flywheels are then constructed from 4140 high-quality materials to ensure reliable results. These flywheels are sure to deliver what they promise:

Features include:

* CAD engineered

* 4140 Steel and Heat-treated ring gears *

* CNC-machined finish

* Available in multiple configurations

Note: The black coating is a black chemical conversion coating (not physically coated) and will not affect clutch discs.

CLUTCH KIT

Extreme Clutch Stage 1A Sprung Organic Clutch Kits are recommended for Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

This pressure plate bolt pattern uses the 6 x evenly spaced 3/8"bolt holes used in some Ford Flywheels. Commonly known as Bronco Pattern

RTS steel flywheels are drilled for this and all other Ford bolt patterns

Specifications
Flywheel Step (mm) Flat
Clutch Disc Diameter (mm) 280
Clutch Disc Spline Count 10
Clutch Disc Spline Diameter (mm) 27
Disc Type Sprung
Friction Material Organic
Stage 1
Recommended Use Street
Clamping Force % Increase 30%
Torque (Nm) Inc FOS 620
Torque (ftlbs) Inc FOS 460
Spigot Bush/Bearing Included Yes
Aligning Tool Included Yes
Spline Grease Included Yes
Transport Weight (kg) 12
