RTS Billet Converter Kit C4 157 Thoot Flexplate

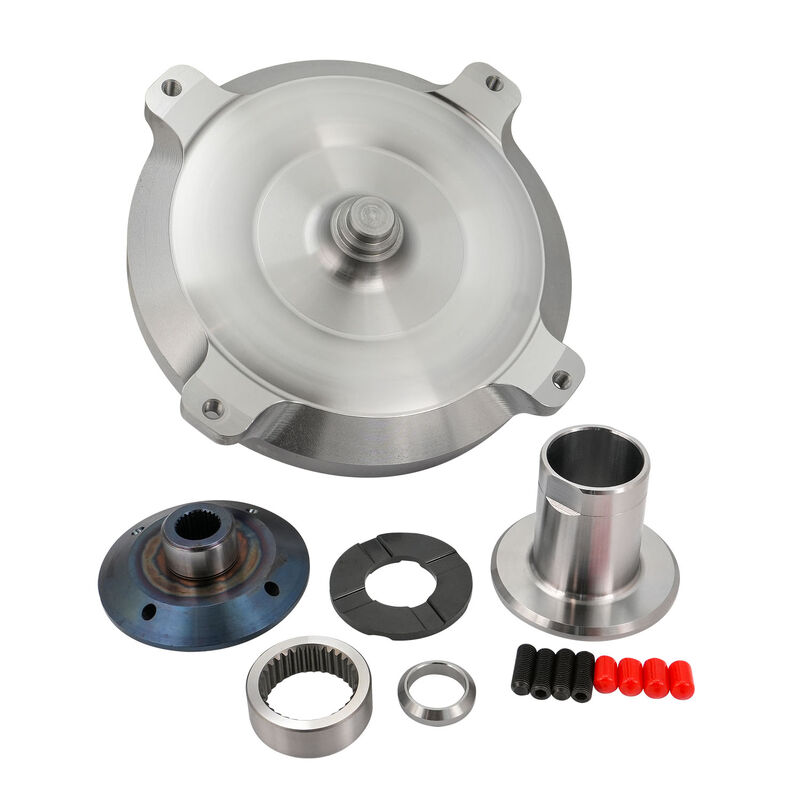

RTS 9.5" Billet converter kit allows builders to assemble a high performance converter with minimal effort.

  • Fully machined cover with bushing installed
  • Unit-specific design for hassle-free installation
  • Oil flow grooves and holes increase fluid flow to keep converters running cooler
  • Turbine hub features a larger flanged diameter to increase the strength rigidity of the turbine
  • Clear, detailed instructions

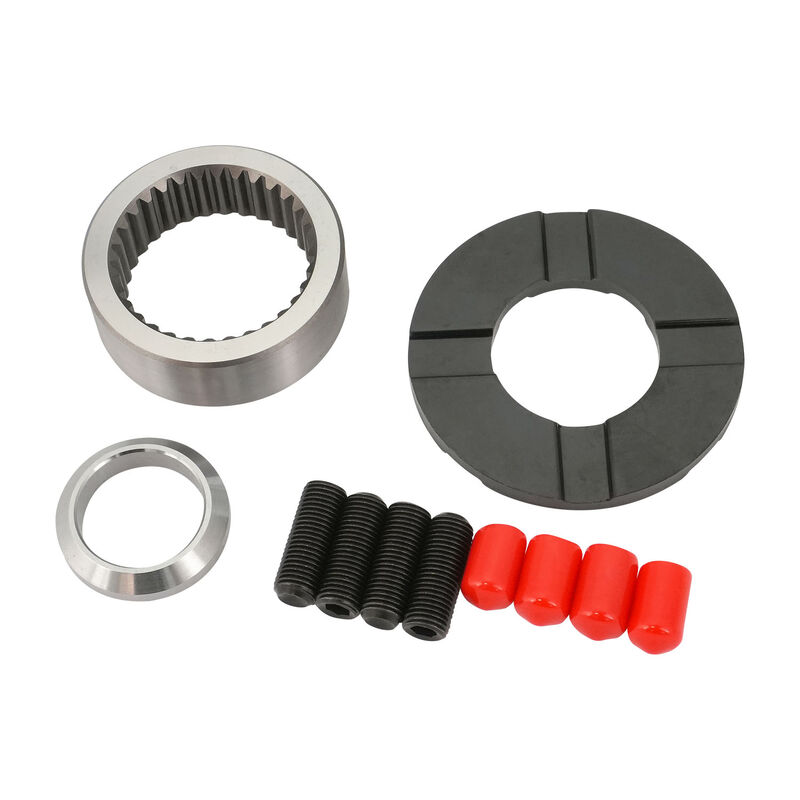

  • Inner Stator Race
  • Thrust Washer

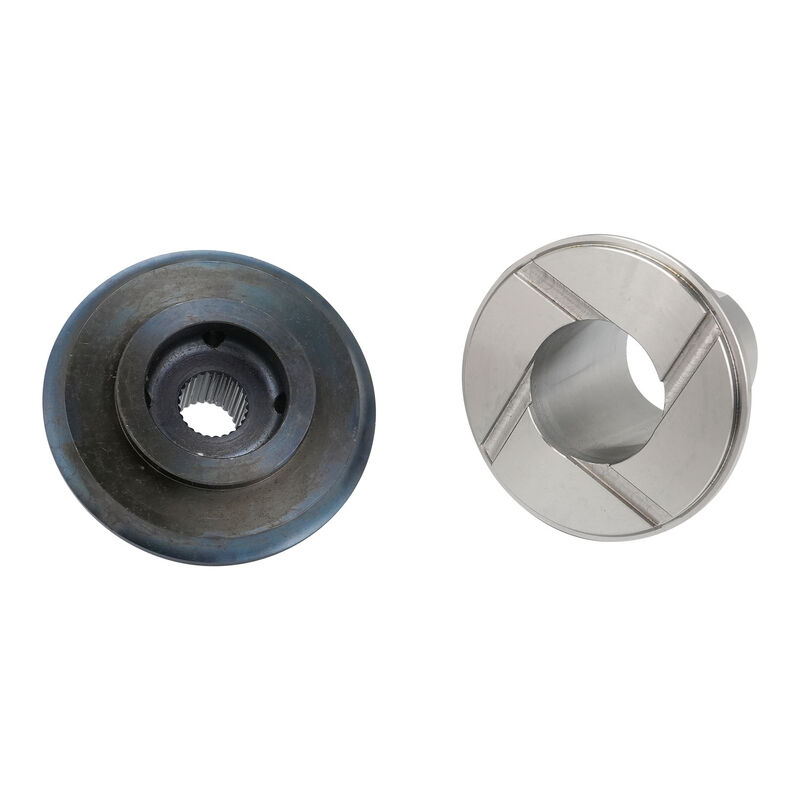

  • Flanged Impeller Hub
  • Stud Covers (4)
  • Pilot

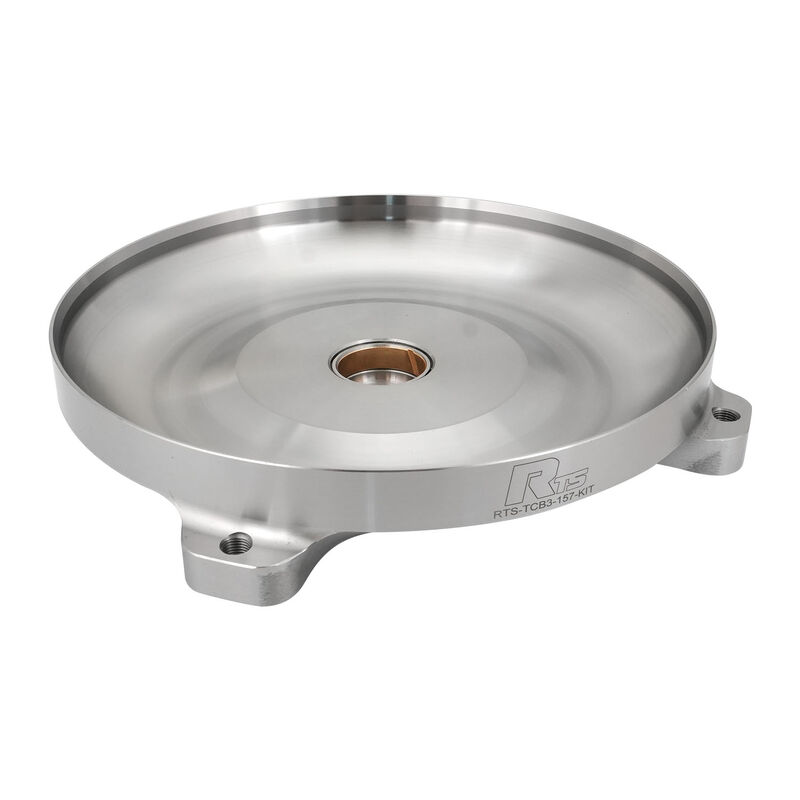

  • Billet Front Cover
  • Front Cover Bushing (Installed)
  • Set Screws (4)
  • Turbine Hub 26-Tooth

  • Unit Size: 9.5 "
  • Core: GM 245mm
  • Dampered: No
  • Lockup: No
  • Transmission Unit: C4
  • Stack Height: 5.938"
  • Bolt Circle Dia.: 10.50"
  • Turbine Hub Input Spline Count: 26
