RTS Aluminium Super Case Completion Kit, This is all the hardware required to assemble your new diff centre, apart from Gears, Spool /LSD and Diff Yoke. High Quality Japanese NTN bearings are supplied and are regarded to be equal to or better than Timken. This particular kit is used for 28 spline Std Pinion gears.

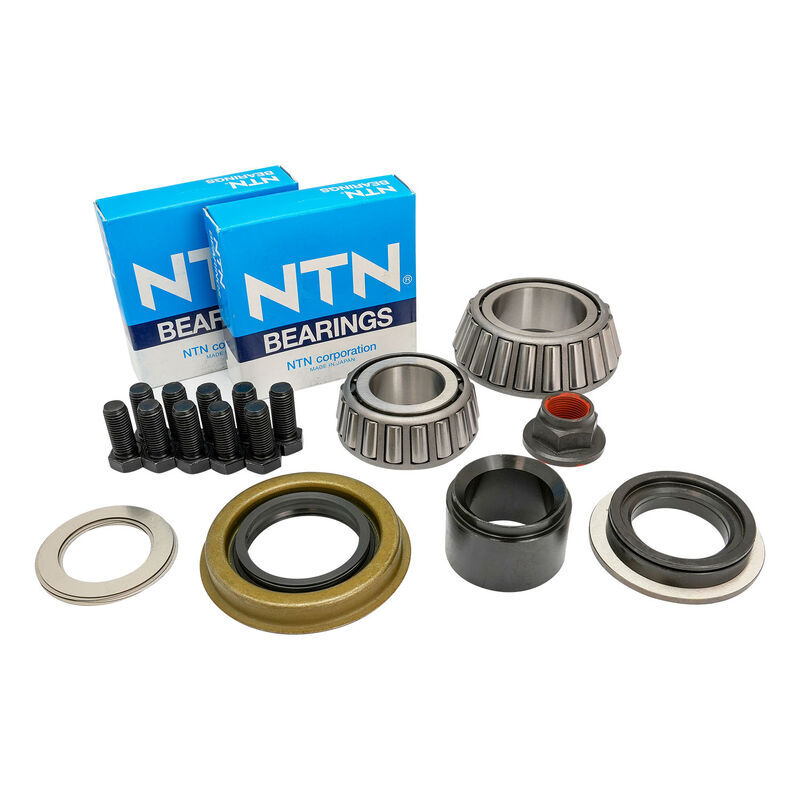

What's included:

2 x 28 Spline Pinion Tapered Bearings ( Cups are pre installed in pinion support for your convenience )

2 x 3.062 Carrier Bearing Assemblies

1 x Flanged Pinion Seal Premium Fluoro rubber/Viton

1 x Solid Adjustable Pinion Spacer, includes .006'',.007",.008",.009",.010" Shim Stack

1 x 28 Spline Pinion Nut

10 x 7/16UNF x 1.00 UHL Grade 8 Crown Wheel Bolts
