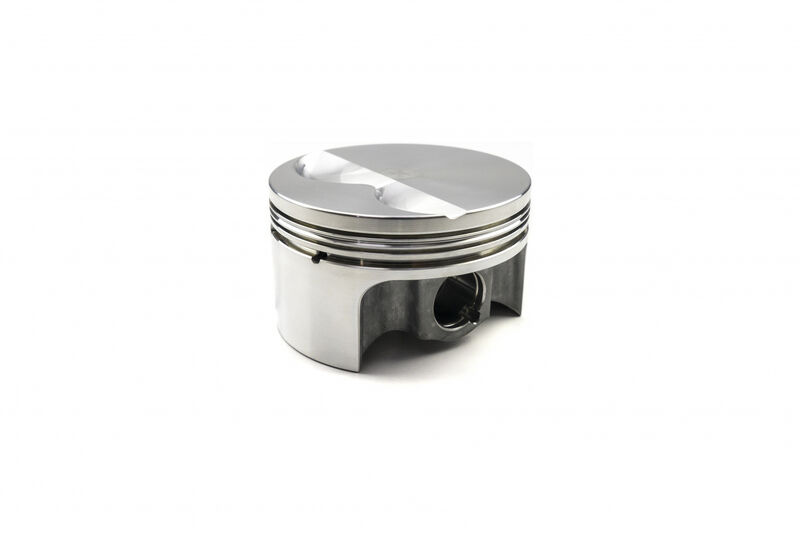

RACETEC SMALL BLOCK MOPAR 340/360 LIGHT DUTY FSR FORGED PISTON SET (PART #RTC-1000973)

RaceTec Race Pistons

RaceTec pistons are the highest quality, precision manufactured options available made from forged or billet 2618 aluminum alloy. Utilizing the latest in CAD software and modern CNC machining centers, it is extremely durable and perfect for your high-horsepower application. RaceTec's in-house design and dyno-proven forgings ensure the strongest and lightest piston for your requirements. They offer a long list of sizes and styles. Choose the proper fit for your build.

Features for most RaceTec pistons:

  • CNC Precision used in every manufacturing operation
  • Valve pockets machined for oversized valves and high lift cams
  • Critically machined ring grooves
  • Top ring land gas distribution grooves to enhance performance and improve ring seal
  • Wrist pins, pin fit, wire locks, broached double pin oilers, and accumulator groove are included
  • Diamond tooling used throughout production, including ring grooves and skirts

SPECIFICATIONS

Engine Family Small Block Mopar 340/360 Light Duty FSR
CID/Ltr 408/6.7
Bore Inch 4.03
Bore mm 102.36
Stroke Inch 4
Stoke mm 101.6
Rod Length 6.125
Comp Dist 1.46
Crown Volume -6.7cc
CR 1 12.0 @ 60cc
CR 2 11.4 @ 65cc
CR 3 10.6 @ 70cc
Alloy 2618
Weight Call
Pin 0.927
Oil Rails Included N/A
Top Ring 1.5mm
2nd Ring 1.5mm
Oil Ring HT 3.0mm
Piston Style Flat Top, two valve reliefs
