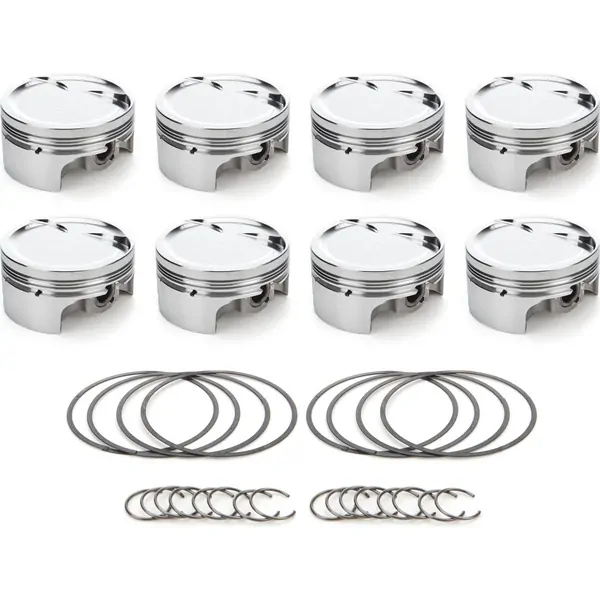

AUTOTEC SMALL BLOCK MOPAR 340/360 FORGED PISTON & RING SET (PART #RTC-1000559)

RaceTec AutoTec Forged Pistons

RaceTec's AutoTec line of forged pistons offers high-quality, precision manufactured options at competitive pricing. The primary material used for AutoTec pistons is 4032 high-silicone aluminum alloy which is extremely durable, has great wear resistance, a low expansion rate, and is very low in friction.

The most common applications for AutoTec pistons include muscle car restorations, performance street rods, as well as many spec racing classes. They can also withstand mild nitrous kits, small turbos, or superchargers. A large selection of sizes and styles is available. Choose the proper fit for your application build.

Additional features for most pistons in the AutoTec line:

  • CNC Precision machined ring grooves
  • Top ring land gas distribution groove to enhance performance and improve ring seal
  • Wrist pins, pin fitting, wire locks, broached pin oilers, and accumulator groove are included
  • Diamond turned skirts

SPECIFICATIONS

Engine Family Small Block Mopar 340/360
CID/Ltr 408/6.7
Bore Inch 4.03
Bore mm 102.36
Stroke Inch 4
Stoke mm 101.6
Rod Length 6.123
Comp Dist 1.457
Crown Volume -24.6cc
CR 1 10.0 @ 60cc
CR 2 9.5 @ 65cc
CR 3 9.1 @ 70cc
Alloy 4032
Weight 465
Pin 0.927
Oil Rails Included N/A
Top Ring 1.5mm
2nd Ring 1.5mm
Oil Ring HT 3.0mm
Piston Style Dish
