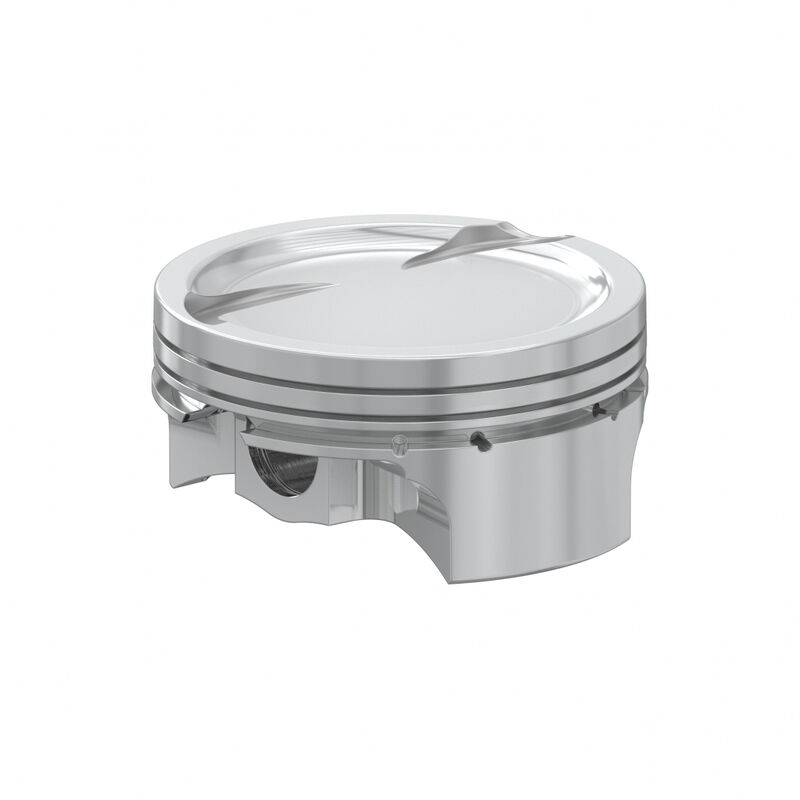

AUTOTEC LS7 12deg FORGED PISTON SET (PART #RTC-1000754)

RaceTec AutoTec Forged Pistons

RaceTec's AutoTec line of forged pistons offers high-quality, precision manufactured options at competitive pricing. The primary material used for AutoTec pistons is 4032 high-silicone aluminum alloy which is extremely durable, has great wear resistance, a low expansion rate, and is very low in friction.

The most common applications for AutoTec pistons include muscle car restorations, performance street rods, as well as many spec racing classes. They can also withstand mild nitrous kits, small turbos, or superchargers. A large selection of sizes and styles is available. Choose the proper fit for your application build.

Additional features for most pistons in the AutoTec line:

  • CNC Precision machined ring grooves
  • Top ring land gas distribution groove to enhance performance and improve ring seal
  • Wrist pins, pin fitting, wire locks, broached pin oilers, and accumulator groove are included
  • Diamond turned skirts

SPECIFICATIONS

Engine Family LS7 12deg
CID/Ltr 441/7.2
Bore Inch 4.125
Bore mm 104.78
Stroke Inch 4.125
Stoke mm 104.78
Rod Length 6.125
Comp Dist 1.053
Crown Volume -24cc
CR 1 10.4 @ 64cc
CR 2 10.0 @ 66cc
CR 3 9.5 @ 70cc
Alloy 4032
Weight 412
Pin 0.927
Oil Rails Included Yes
Top Ring 1.5mm
2nd Ring 1.5mm
Oil Ring HT 3.0mm
Piston Style Dish

More From This Category

RaceTec Pistons, RaceTec, SBC 23deg , Flat Top, 0.04 Oversize, 4.040 Bore, 3.750 Stroke, 1.000 Comp

RaceTec Pistons, RaceTec, SBC 23deg , Flat Top, 0.04 Oversize, 4.040 Bore, 3.750 Stroke, 1.000 Comp

$1,806.46

MANLEY Piston, Custom, 87.5mm-103mm Bore Range, Each

MANLEY Piston, Custom, 87.5mm-103mm Bore Range, Each

$1,628.50

RaceTec Pistons, AutoTec, Pontiac 455, Flat Top, 0.033 Oversize, 4.185 Bore, 4.210 Stroke, 1.470

RaceTec Pistons, AutoTec, Pontiac 455, Flat Top, 0.033 Oversize, 4.185 Bore, 4.210 Stroke, 1.470

$1,313.54

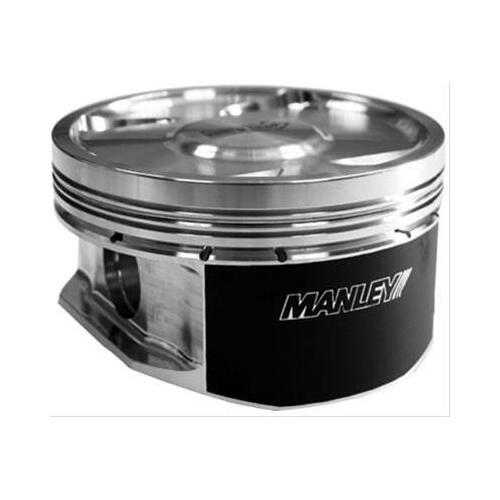

MANLEY Piston, Extreme Duty, 1.115 in. Compression Distance, 4.185 in. Bore Size, -11cc Dish, For Chevrolet LS, Set of 8
