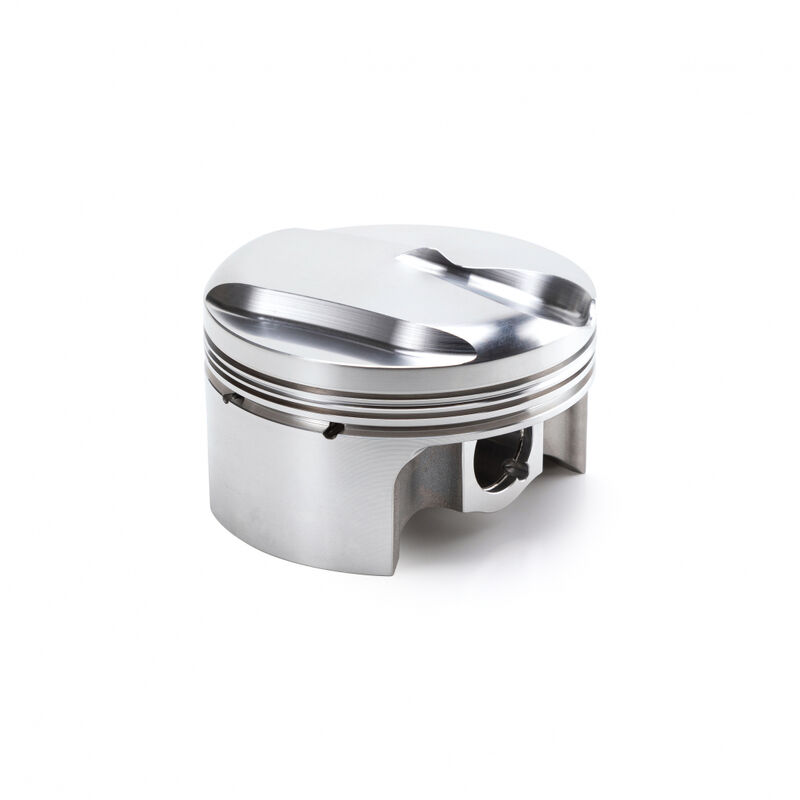

AUTOTEC BIG BLOCK CHEVY 502 FORGED PISTON SET (PART #RTC-1000766)

RaceTec AutoTec Forged Pistons

RaceTec's AutoTec line of forged pistons offers high-quality, precision manufactured options at competitive pricing. The primary material used for AutoTec pistons is 4032 high-silicone aluminum alloy which is extremely durable, has great wear resistance, a low expansion rate, and is very low in friction.

The most common applications for AutoTec pistons include muscle car restorations, performance street rods, as well as many spec racing classes. They can also withstand mild nitrous kits, small turbos, or superchargers. A large selection of sizes and styles is available. Choose the proper fit for your application build.

Additional features for most pistons in the AutoTec line:

  • CNC Precision machined ring grooves
  • Top ring land gas distribution groove to enhance performance and improve ring seal
  • Wrist pins, pin fitting, wire locks, broached pin oilers, and accumulator groove are included
  • Diamond turned skirts

SPECIFICATIONS

Engine Family Big Block Chevy 502
CID/Ltr 502/8.2
Bore Inch 4.47
Bore mm 113.54
Stroke Inch 4
Stoke mm 101.6
Rod Length 6.135
Comp Dist 1.645
Crown Volume 1cc
CR 1 9.5 @ 110cc
CR 2 9.0 @ 118cc
Alloy 4032
Weight 661
Pin 0.99
Oil Rails Included N/A
Top Ring 1/16"
2nd Ring 1/16"
Oil Ring HT 3/16"
Piston Style Dome
