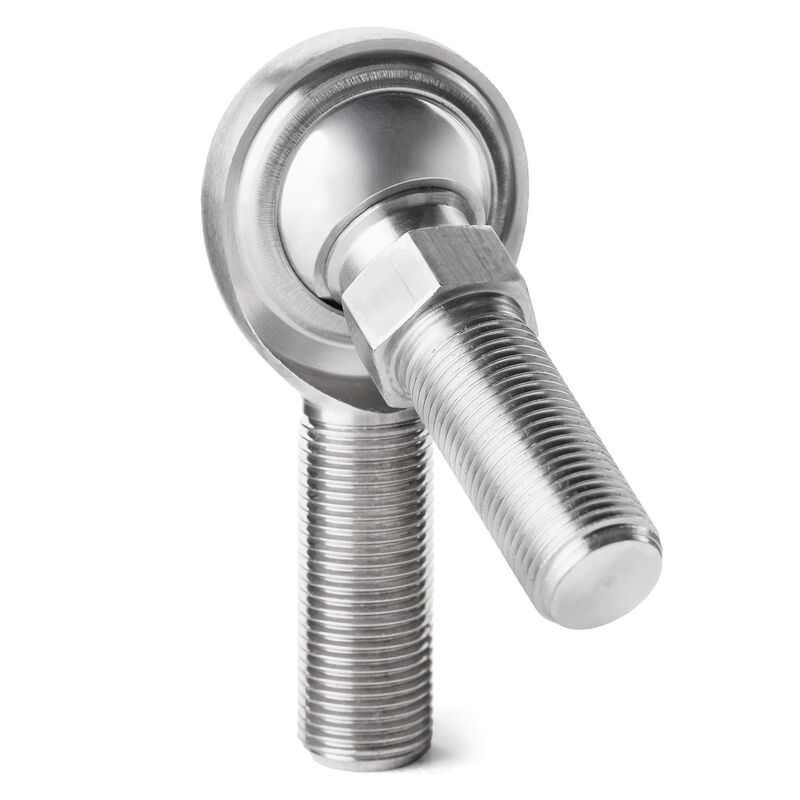

MG Series 2 Piece Stainless Rod End, 16mm Bore, M16X2.0 LH Male Thread, PTFE Lined (PART #QA1-MGML16TS)

QA1's

MGM-T Series

stainless steel metric male rod ends constructed using a traditional two-piece design, making them ideal for a range of commercial applications. They also feature a self-lubricating PTFE liner and a 300 series stainless steel body and are ideal for use in corrosive environments. These metric rod ends are available with right- or left-hand threads. Includes a pre-attached stud with right-hand threads for easy connection and higher misalignment than typical bolt-mounted applications.

BALL:

440C Stainless Steel, Heat Treated, Precision Ground

LINER:

Self-Lubricating PTFE

BODY:

300 Series Stainless Steel

STUD:

Stainless Steel

SPECIFICATIONS

Rod End Series MG Series
Style/Construction 2 Piece Stainless
Bore 16mm
Thread Direction LH
Thread Size and Pitch M16X2.0
Male or Female Thread Male
PTFE Lined? Yes
Configuration Studded
