Proflow Cylinder Heads & Intake Manifold Kit

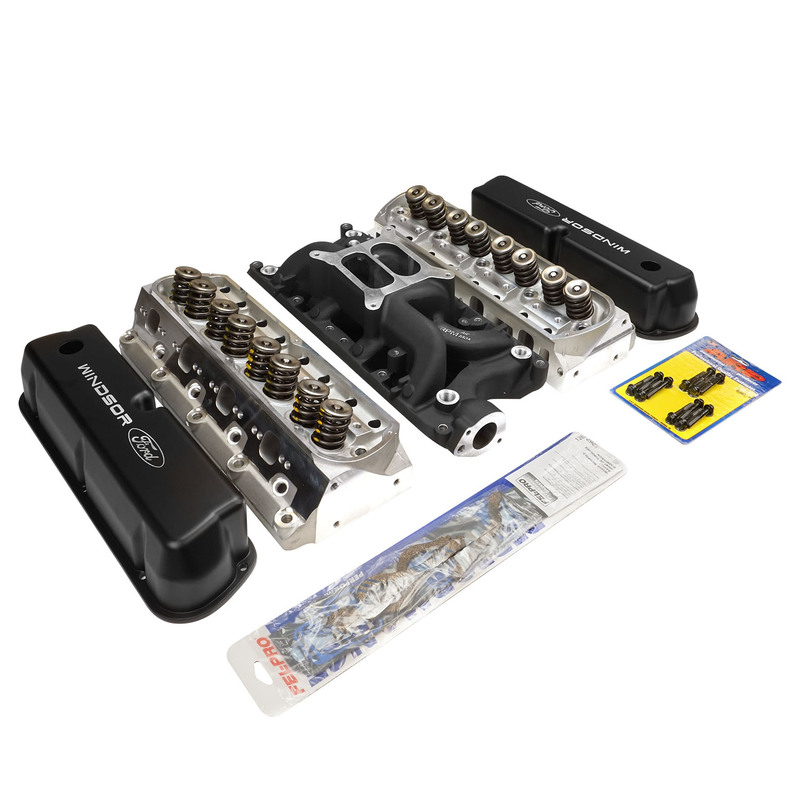

Kit Includes Proflow Aluminium Cyl Heads,  Proflow Intake Manifold, Valve Covers , Intake Gaskets , Intake Bolts

Proflow Cylinder Heads do not sacrifice quality for a low price--you get both with our aluminium cylinder heads. The lightweight heads are cast from A-356 aluminium alloy with a large choice of Engine, for SB & BB Chevrolet, LS Chev Holden Ford SB 289-351W, 302,351 Cleveland 2V & 3V & BB FE, and Chrysler SB & BB, phosphorous bronze valve guides, and ductile iron valve seats for use with unleaded gas. They're also end-milled and drilled for accessories. The fully assembled heads have stainless steel valves, High Performance valve springs, 7 degree valve locks, rocker arm studs, and guideplates. Perfect for your Mild or High performance Hot Rod.

Specifications:

• Material:  A356 Aluminium
• Combustion Chamber:  58cc
• Intake Port Volume:  185cc
• Intake Port Dimension:  2.10" x 1.25"
• Exhaust Port Volume:  63cc
• Exhaust Port Dimension:  1.35" H x 1.35" W
• Spark Plug Location:  OEM
• Intake Valve Diameter:  2.02"
• Exhaust Valve Diameter:  1.60"
• Valve Stem Diameter:  8mm
• Valve Spring Pocket I.D.:  1.55"
• Valve Guide Material:  Manganese Bronze
• Valve Guide O.D.:  .500" (.560" at base)
• Rocker Stud Thread Size:  7/16" x 14
• Valve Angle:  20°
• Deck Thickness:  .750"

Proflow's dual-plane AirMax Intake manifolds for propular V8 engines features improved technology and design that keeps the air/fuel mixture cooler all the way to the cylinder heads. The open air space from the AirMax design separates the runners from the heat of the lifter-valley cover. The runners are tuned to move the power band 1,000 rpm higher over the original AirDuel manifolds to 1500-6500 rpm.

Proflow Cast Valve Cover's What's a high performance Ford without a set of Proflow Chev or Ford Logo valve covers. These are Tall Cast aluminium black powder coat finish. The valve covers are available in a variety of styles with an array of logos that are sure to add an individual touch to your engine.

Felpro Intake Gasket : Fel-1262

ARP Intake Bolt Kit :  ARP-154-2001
