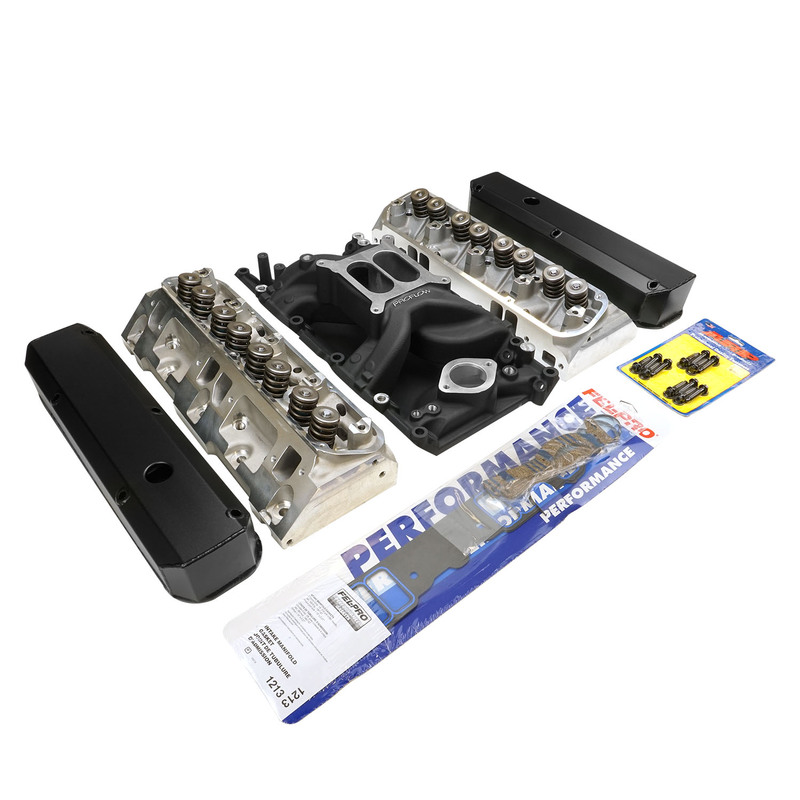

Proflow Cylinder Heads & Intake Manifold Kit

Kit Includes Proflow Aluminium Cyl Heads,  Proflow Intake Manifold, Valve Covers , Intake Gaskets , Intake Bolts

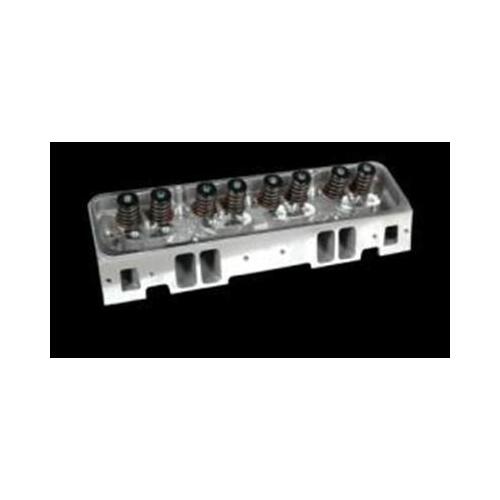

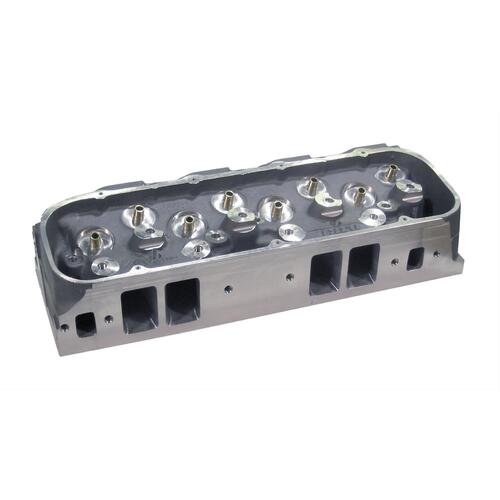

Proflow Cylinder Heads do not sacrifice quality for a low price--you get both with our aluminium cylinder heads. The lightweight heads are cast from A-356 aluminium alloy with a large choice of Engine, for SB & BB Chevrolet, LS Chev Holden Ford SB 289-351W, 302,351 Cleveland 2V & 3V & BB FE, and Chrysler SB & BB, phosphorous bronze valve guides, and ductile iron valve seats for use with unleaded gas. They're also end-milled and drilled for accessories. The fully assembled heads have stainless steel valves, High Performance valve springs, 7 degree valve locks, rocker arm studs, and guideplates. Perfect for your Mild or High performance Hot Rod.

Specifications:

  • Material:  A356 Aluminium
  • Chamber Chamber:  60cc
  • Intake Port Volume:  179cc
  • Intake Port Dimension:  2.28" x 1.16"
  • Exhaust Port Volume:  79cc
  • Exhaust Port Dimension:  1.75" H x 1.257" W
  • Spark Plug Location:  Angled
  • Intake Valve Diameter:  2.02"
  • Exhaust Valve Diameter:  1.60"
  • Valve Stem Diameter:  11/32"
  • Valve Spring Pocket I.D.:  1.50"
  • Valve Guide Material:  Manganese Bronze
  • Valve Guide O.D.:  .530" (.560" at base)
  • Rocker Stud Thread Size: OE stock
  • Valve Angle:  18°

Deck Thickness:  .625

Proflows AirMax intake manifold for propular V8 engines features improved technology and design that keeps the air/fuel mixture cooler all the way to the cylinder heads. The open air space from the AirMax design separates the runners from the heat of the lifter-valley cover. The runners are tuned to move the power band 1,000 rpm higher over the original AirDuel manifolds to 1500-6500 rpm.

Proflow's fabricated aluminium valve covers offer you lightweight covers without the heavyweight price. Our tall 6061 aluminum valve covers will clear most of the popular rocker combinations and we have a choice of valve cover set ups, as well as finishes, to provide you with exactly what you need. All set-ups include the appropriate fasteners to make your install easier. Get the most for your dollar and breathe easy with Proflow's fabricated aluminium valve covers.

Felpro Intake Gasket : Fel-1213

ARP Intake Bolt Kit :  ARP-144-2001

ProFlow Fabricated Aluminium Valve Covers : PFEVC-4406

Proflow Cylinder Heads & Intake Manifold Kit

Kit Includes Proflow Aluminium Cyl Heads,  Proflow Intake Manifold, Valve Covers , Intake Gaskets , Intake Bolts

Proflow Cylinder Heads do not sacrifice quality for a low price--you get both with our aluminium cylinder heads. The lightweight heads are cast from A-356 aluminium alloy with a large choice of Engine, for SB & BB Chevrolet, LS Chev Holden Ford SB 289-351W, 302,351 Cleveland 2V & 3V & BB FE, and Chrysler SB & BB, phosphorous bronze valve guides, and ductile iron valve seats for use with unleaded gas. They're also end-milled and drilled for accessories. The fully assembled heads have stainless steel valves, High Performance valve springs, 7 degree valve locks, rocker arm studs, and guideplates. Perfect for your Mild or High performance Hot Rod.

Specifications:

  • Material:  A356 Aluminium
  • Chamber Chamber:  60cc
  • Intake Port Volume:  179cc
  • Intake Port Dimension:  2.28" x 1.16"
  • Exhaust Port Volume:  79cc
  • Exhaust Port Dimension:  1.75" H x 1.257" W
  • Spark Plug Location:  Angled
  • Intake Valve Diameter:  2.02"
  • Exhaust Valve Diameter:  1.60"
  • Valve Stem Diameter:  11/32"
  • Valve Spring Pocket I.D.:  1.50"
  • Valve Guide Material:  Manganese Bronze
  • Valve Guide O.D.:  .530" (.560" at base)
  • Rocker Stud Thread Size: OE stock
  • Valve Angle:  18°

Deck Thickness:  .625

Proflows AirMax intake manifold for propular V8 engines features improved technology and design that keeps the air/fuel mixture cooler all the way to the cylinder heads. The open air space from the AirMax design separates the runners from the heat of the lifter-valley cover. The runners are tuned to move the power band 1,000 rpm higher over the original AirDuel manifolds to 1500-6500 rpm.

Proflow's fabricated aluminium valve covers offer you lightweight covers without the heavyweight price. Our tall 6061 aluminum valve covers will clear most of the popular rocker combinations and we have a choice of valve cover set ups, as well as finishes, to provide you with exactly what you need. All set-ups include the appropriate fasteners to make your install easier. Get the most for your dollar and breathe easy with Proflow's fabricated aluminium valve covers.

Felpro Intake Gasket : Fel-1213

ARP Intake Bolt Kit :  ARP-144-2001

ProFlow Fabricated Aluminium Valve Covers : PFEVC-4406
