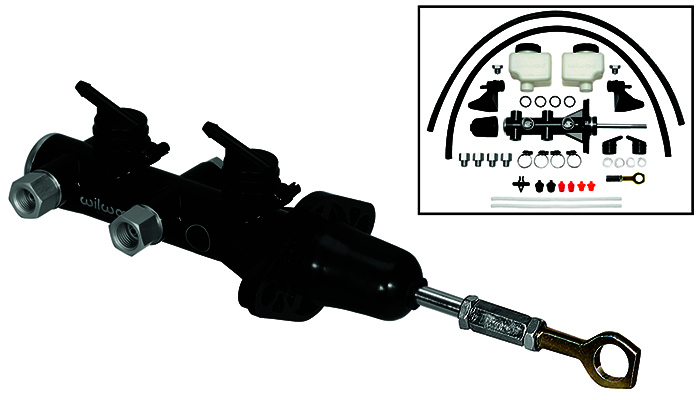

Wilwood’s new Remote Tandem Master Cylinder for Classic Mustang is available in 2 bore sizes 7/8” and 15/16”, and in two finishes: ball burnished and black e-coat. They’re designed for mount flanges from 3.22” to 3.40” and a pushrod and eyelet for Calssic Mustang and other Ford vehicles from 1965 to 1973. Remote Tandem Master Cylinders offer fluid outlet ports on both sides of the bore. The stroke is set at 1.12” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer our combination proportioning valve kit, which includes brackets and stainless lines specifically for use with these master cylinders, see PN 260-14248 for a retrofit kit.
