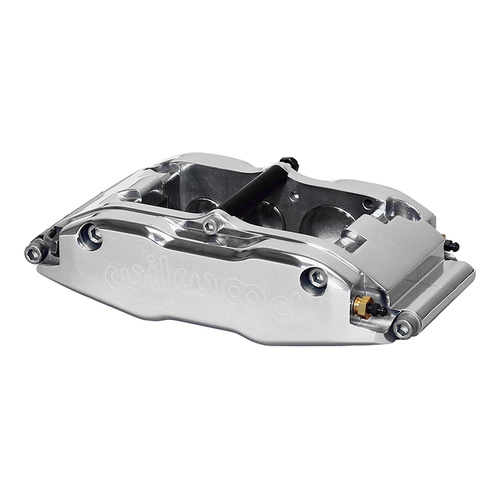

Forged Dynalite Internal-Dust Seal

The Forged Billet Dynalite Internal-Dust Seal is the further enhancement of the venerable Forged Dynalite series calipers. Designed with a single split bridge and spacer less design to enhance strength and appearance. These latest applied developments and innovations in caliper design and manufacturing processes have resulted in substantial improvements in strength and performance over all comparable models. This new spacer-less design of the Forged Dynalite series of calipers, makes this the stiffest and most visual pleasing design so far. Now with The addition of Wilwood’s exclusive wiper dust seal allows these calipers to be used in areas that may mandate environmental sealing.

The Forged Billet Dynalite Internal is the strongest caliper in the class, with weights starting at 3.00 pounds. The process of stress-flow forging re-aligns the metal's grain structure within the contour of the caliper body. This process eliminates the breaks and interruptions to the internal grain structure that occur when machining a straight block billet. The FEA generated radial transition design eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. Incorporating a radius in this transition area substantially increases resistance to deflection and caliper separation under load. Structural deflection and volume displacement tests have proven the Forged Dynalite to outperform all existing styles of this popular caliper size.
