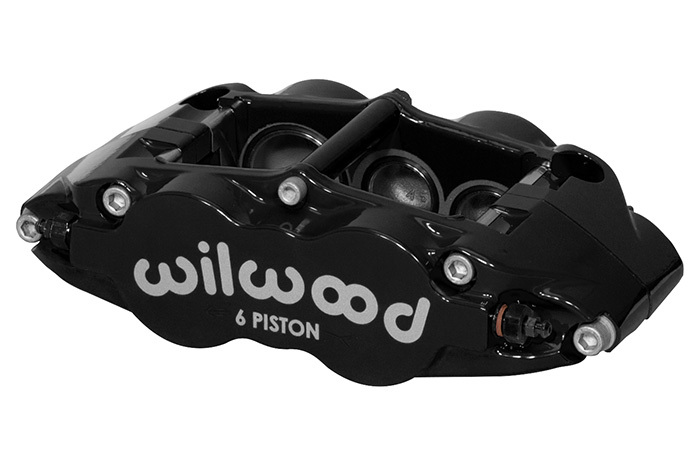

Forged Narrow Superlite 6 Piston Caliper

The Forged Narrow Superlite 6R (FNSL6R) is our newest version for the venerable Superlite caliper series adds the versatility and convenience of radial mounting to this widely popular caliper group. Radial mounting simplifies adaptation and provides two planes of adjustment for accurate alignment over the disc. These calipers integrate "Big Brake" style with Wilwood's latest technology to generate big stopping power in extreme environments over a broad range of vehicle applications.

Pistons
Piston Count 6
Piston Area (in²) 4.04
Piston Type Stainless
Dust Boot No
Rotor Dimensions
Rotor Width (in) 1.10
Rotor Diameter(in) 14.00
Pad Dimensions
Pad Area (in²) 8.2
Pad Volume (in³) 3.8
Duty Rating & Material
Material Forged Aluminium
Weight(Lbs) 5.0
Colors & Finish
Color Anodize
Finish Type III Anodize
Mounting
Mount Center(in) 5.98
Mount Position
Mount Side Left Hand
Mount Type Radial
