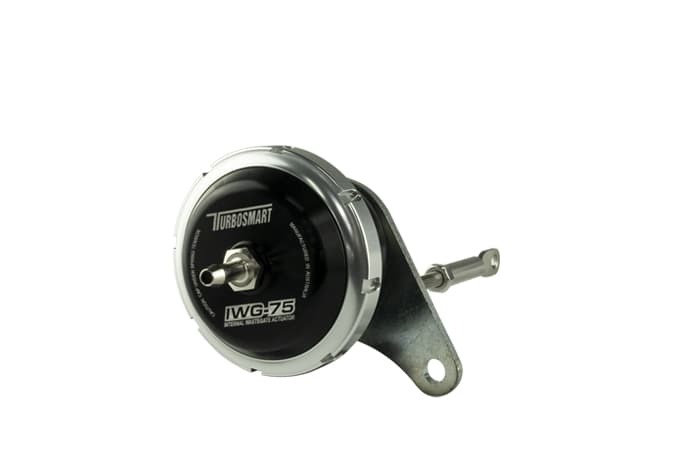

Turbosmart Upgraded Wastegate Actuators have been developed to provide maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased 'Working Ratio' over the factory equipment resulting in improved boost response, throughout the RPM range.

This Improved 'working ratio' is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.

Upgrading with the same base pressure as factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer, into higher RPM. These improvements can be amplified with higher base pressures, however tuning & recalibration is likely required.

Available In
7 PSI / 1.00 BAR: TS-0610-1072
18 PSI / 1.24 BAR: TS-0610-1182
22 PSI / 1.51 BAR: TS-0610-1222
24 PSI / 1.65 BAR: TS-0610-1242


Features
Proprietary Silicon Nomex Diaphragm
Choice of Springs from 3psi to 26psi (Optional)
High Grade Billet Aluminum Construction
Stainless Steel Rods and Clevis
Turbosmart Unique Locking Collar System

Notes
Does not fit US and other LHD models - This part only fits RHD vehicles

7 psi version is a direct replacement for the factory item. All other versions will require tuning / calibration of your engines ECU.

This is a bolt on fitment for various Mazda 2.3L Turbo engines, including the Mazda 3 MPS, 6 MPS and CX7.
