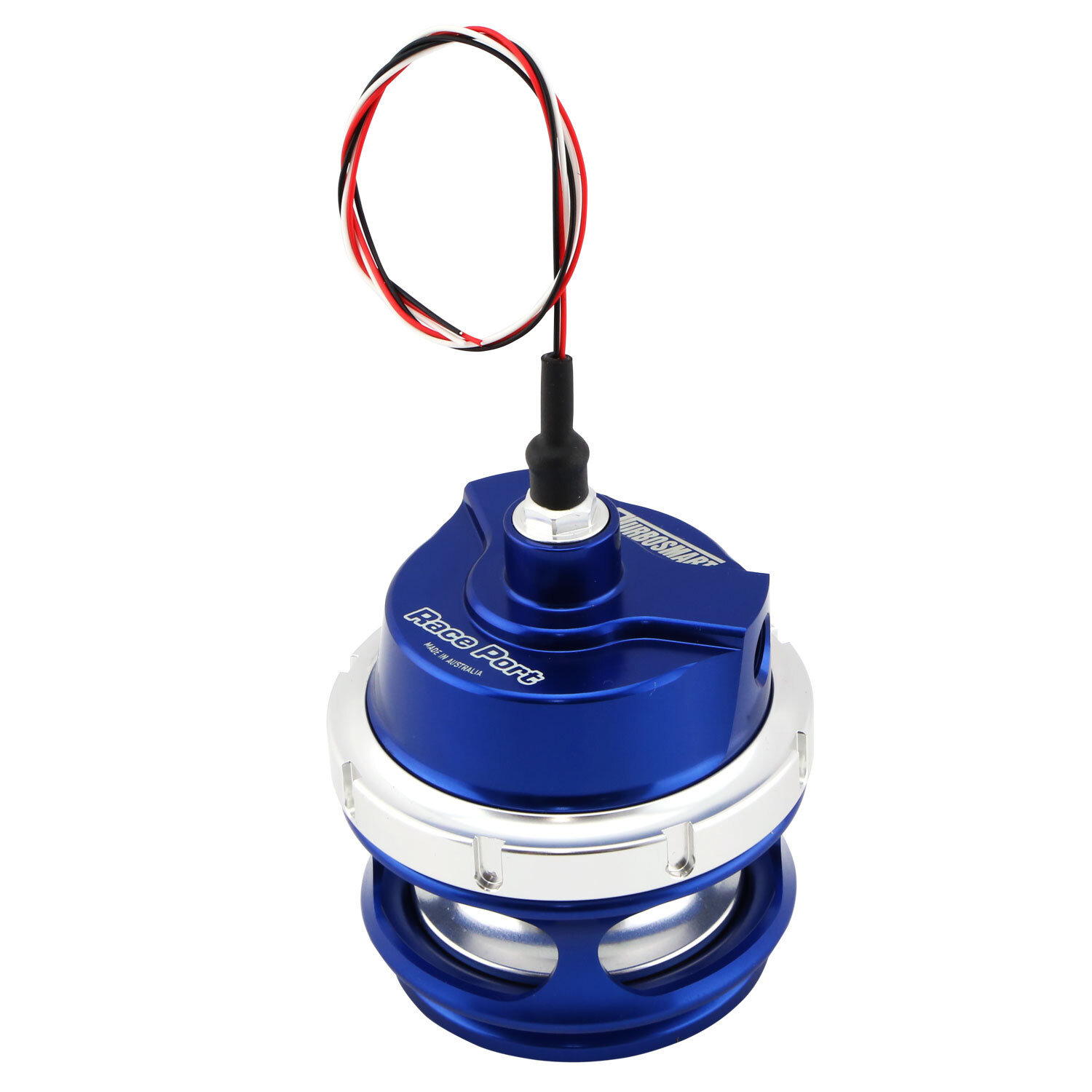

The Gen-V Race Port 'sensor Cap' allows you to monitor blow-off valve (BOV) position for diagnostic or tuning purposes, a true unique solution and first of it's kind on the market. If you are using BOV for traction/torque control, knowing how far it's open is paramount to providing insight to further optimise the calibration process. Aside from a calibration benefit, if you have any doubt that the BOV is not staying closed when it should be, check the logs, this has never been easier with the Turbosmart Gen-V Race Port 'sensor Cap' Features & Benefits Vacuum fittings profiled alloy weld flange, V-band assembly, and Blue Spring Rated -18 to -14 InHg (installed) Billet 6000 series aluminium construction Quick release v-band collar for ease of installation and removal 2.0 Inlet flows over 330 CFM MILSPEC hard anodized valve guide and stem Hi Temp Silicon Nomex diaphragm Positive sealing valve seat Twin 1/8NPT pressure ports for convenient positioning Collar secured cap for quick spring changes 4inHg to 26inHg activation range 5 user configurable corrosion resistant springs available Valve position sensor option Designed, manufactured and validated in-house at Turbosmart HQ
