TCI 4X Four-Speed Transmission Package for Buick/Oldsmobile, Non-Electronic 700R4-Based, 750 HP (PART #TCI-371800P9)

TCI 4x Four-Speed Auto Transmissions enable the use of a 700R4 transmission with non-GM applications. This 700R4-based transmission features an SFI-spec adapter bellhousing for easy installation of the transmission behind a Buick/Oldsmobile engine. The fully mechanical 4x Four-Speed Auto Transmission, non-electronic 700R4-based also includes an adapter flexplate, transmission cooler, dipstick and all necessary hardware.

It is designed with street rodders in mind and is rated to 750 HP. Application-specific kits do not require a transmission controller and use a Constant Pressure Valve Body to fix line pressure with no chance of encountering low line pressure conditions a common source of 700R4 failure. A compact design means the transmission will fit in most applications without the need for tunnel modifications.

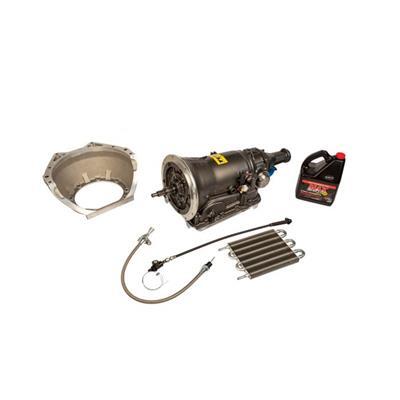

Package Includes: Transmission "Base", SFI-Spec Bellhousing, Transmission Cooler, Dipstick, TV Cable and (3) Gallons Max-Shift Transmission Fluid.

SPECIFICATIONS

UPC 788120158046
Manufacturer TCI
Series 4x Four-Speed
Transmission Manufacturer GM
OEM Model 700R4
Grade Type Performance
Coating Type HDT Coating (Heat Dissipating Technology)
Number of Gears 4
First Gear Ratio 3.06
Second Gear Ratio 1.62
Third Gear Ratio 1
Maximum Horsepower 750 HP
Low Drag Component No
Casing Material Cast Aluminum
Casing Color Gray
Shaft Spline Quantity 30
Meets or Exceeds OEM Specifications Yes
Warranty 12 Months
