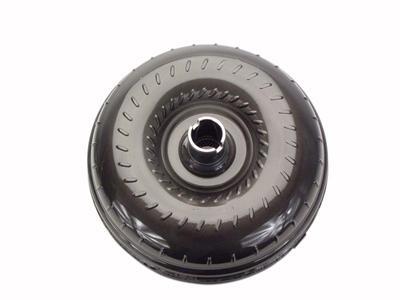

TCI Breakaway Torque Converter for 1984-1997 700R4, 1993-1997 4L60E and 1997-2005 Corvette (PART #TCI-242800)

This Breakaway Converter is designed specifically for 1984-1997 700R4, 1993-1997 4L60E and 1997-2005 Corvette. Provides 2200 to 2400 Stall behind Small Blocks and 2400 to 2600 Stall behind Big Blocks.

The first step into serious high performance, the Breakaway is a great torque converter for moderately modified street machines and weekend racers that are also used as daily drivers. It provides approximately 2400 to 2600 RPM flash stall without negatively affecting part throttle driving.

Designed for both efficiency at highway cruising speeds and to launch hard at wide open throttle, the Breakaway is a fantastic all-around torque converter featuring furnace-brazed fins, needle bearings, a hardened, pre-ground pump hub and computer balancing. NOTE: 1984-1997 30-Spline and 1997-2005 C5 Corvette applications (298mm applications). Will not fit 1998-02 F-body.

SPECIFICATIONS

UPC 788120003711
Manufacturer TCI
Engine Specs Chevrolet V8
Series Breakaway
Transmission Manufacturer GM
Advertised Cam Duration 265 to 280 Degrees
Engine Characteristics Fair Idle, Mild Modifications
Expected Stall Speed with Small Block 2200 to 2400 RPM
Expected Stall Speed with Big Block 2400 to 2600 RPM
Rear Gear Ratio 3.00 to 3.73
Converter Type Lock-Up
Low Drag Component No
Warranty 12 Months
