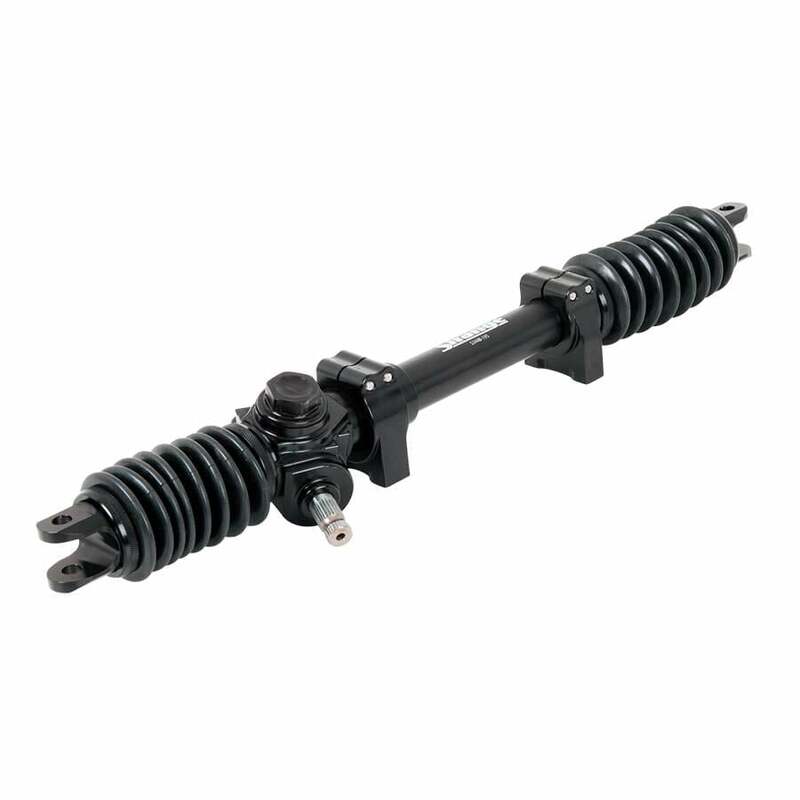

Part Number: S3448-195

Application – Drag Race Door Cars

Description
Steering Rack & Pinion
22 to 1 ratio
19.5″ tie rod centers
20° horizontal pinion angle
9/16″-26 spline pinion – Same spline as Mustang / Pinto
16° downward pinion angle
4.75″ total rack travel
6.10″ mounting clamp centers

5.00 lbs

Features
Body
• 6061-T6511 billet aluminum
• Black anodized finish

Rack & Pinion Gear
• 4140 premium alloy steel
• Hardened rack & pinion gear

Clevis Ends
• 6061-T6511 billet aluminum
• Accepts 3/8″ high misalignment rod ends *
• Adjustable clevis angles
• Black anodized finish

Bellows
• High temperature silicone

Mounting Clamp – Pinion Side
• 6061-T6511 billet aluminum
• 7/16″-14 bolt holes on 1.25″ centers
• Black anodized finish

Mounting Clamp – Opposing Side
• 6061-T6511 billet aluminum
• 3/8″-16 bolt holes on 1.380″ centers
• Black anodized finish

* Rod Ends Not Included
Use HXAM-16T (RH threads) & HXAB-16T (LH threads)

Related Components
Tie Rod Fabrication Kit…….. S3449
Steering shaft u-joint …….. S3450

Strange Rack & Pinion Steering Box
With 24 1/2″ centers………… S3448
