Ford 9 Complete Gear Set Installation Kit Fits Strange N1922 and N2322 Supports For 28 Spline Pinion (No Support Races). Features Timken bearings and races.

Part Number: R5237-3250

Application
Strange tapered bearing pinion supports – N1922 / N2322
Installing 35 spline pinion gear

Support races and gasket are not included

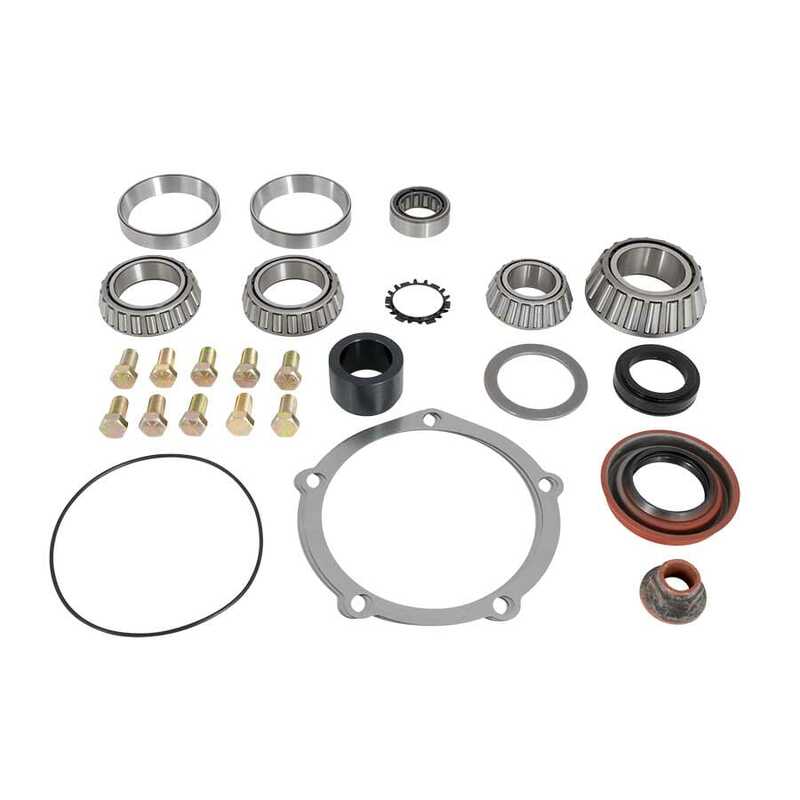

Kit Includes

Front and rear pinion bearings – N1930 / N1938
Side bearings and races – D1586D1588D1590, or D1592
Tail bearing – N1940 or N1943
Tail bearing retainer – N1941 (Except HD Pro)
Pinion seal – N1960
Pinion support o-ring – N1958A
Flanged pinion nut – N1922A
Solid adjustable pinion preload spacer – N1919
Small pinion adapter sleeve – N1926A
Rear bearing spacer washer – N1926D
Pinion depth shim kit – N1962
7/16″-20 ring gear bolts – N1965N1967N1968, or D1565RK
