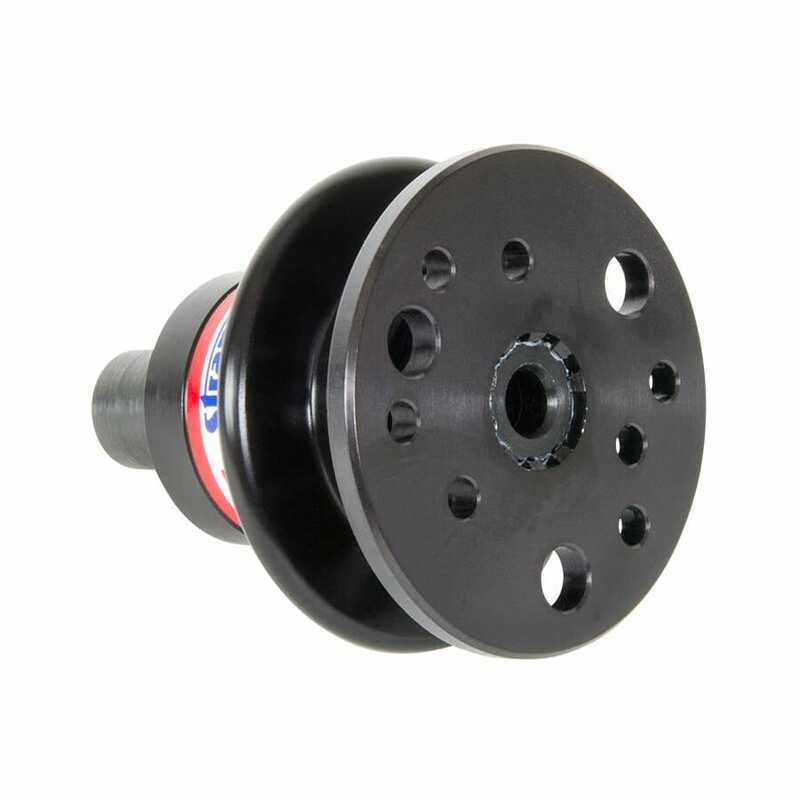

These quick-release steering hubs from Strange are SFI-certified. The billet aluminum hubs are completely self-contained mechanisms. A 4130 stub shaft is furnished for ease of installation, and their keyed-spline design allows for easy wheel orientation. Several models are available to fit a variety of steering wheels.

Part Number: Q1000

Application
Dragster steering wheels
With three or 4 bolt hole pattern

Features
• Provides quick removal of steering wheel
• Integral flange eliminates loose components
• Spring loaded with positive locking system
• Coarse spline simplifies engagement
• One wide tooth ensures proper steering wheel alignment

Hub
2024-T351 billet aluminum
2.500″ OD
3 on 1.375″ bolt circle .193″ holes
3 on 1.750″ bolt circle .316″ holes
4 on .750″ x 1.650″ centers .193″ holes
Broach 10 spline with one tooth removed
Black hard anodized finish

Release Collar
6061-T6511 billet aluminum
2.480″ OD
Black hard anodized finish

Weld End
4130 chrome moly
9 spline with one wide tooth
.650″ OD tube end
.312″ bore lightening hole
Black oxide finish

Related Components
Grant wheel quick release hub……….. Q1200
Sparco wheel quick release hub….. Q1200SPAR
