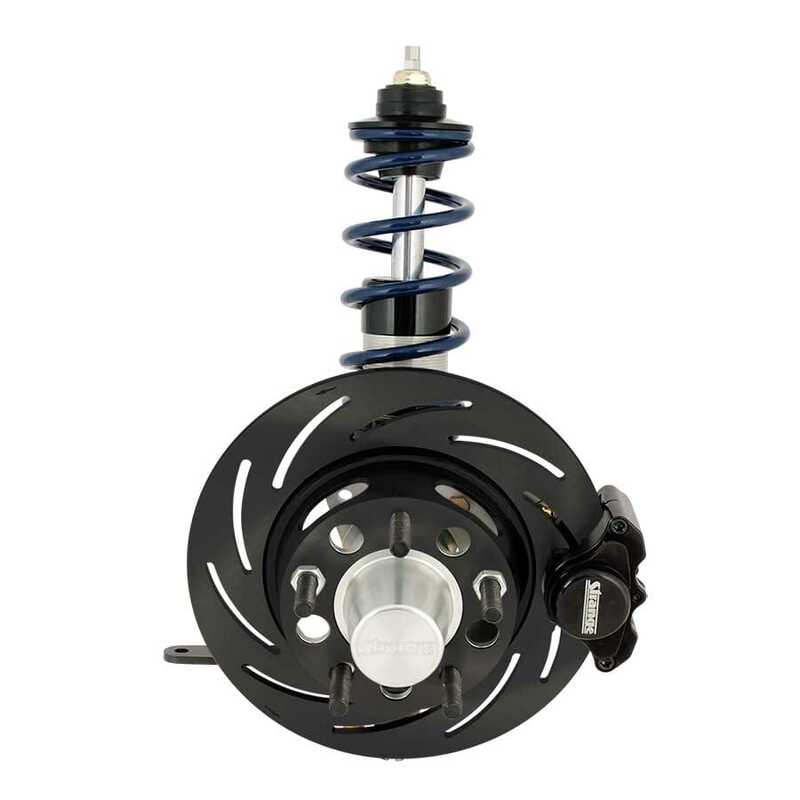

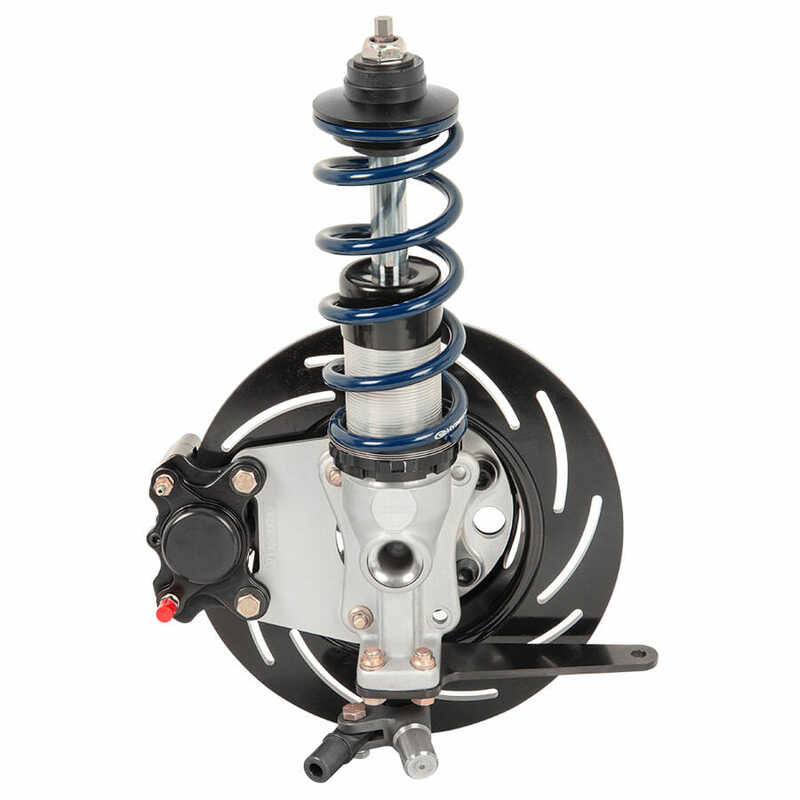

Strange Lightweight Single Piston Aluminum Strut Packages

These Strange lightweight single-piston aluminum strut packages will give your race car the consistency you need. They are recommended for vehicles under 2,400 lbs. and are designed for drag racing only.

Part Number: PSS115

Drag Race Use Only

For Hub Mount Wheels
Choice of 4 1/2″ or 4 3/4″ bolt circle

Features

Compact lightweight design sheds front end weight
Externally adjustable for rate of extension
Allows fine tuning of front suspension

Strut Package Includes

Stud Mount Struts
• Forged 2014-T4 aluminum bodies
• Stainless steel spindles
• 2 1/2″ stroke (with bumper installed)
• Externally adjustable for extension rate
• Valved specifically for Drag Racing
• Custom valving available on request
• Forged in the USA
• Designed, machined, & assembled by Strange Engineering

Lightweight Fabricated Lower Control Arms – S3420-WAK / S3421-WAK
• Constructed from 4130 chromoly components and tubing
• Modifications to tube length and welding of tube adapters is required
• Chromoly tube adapters supplied loose
• Choice of 7/16″ or 1/2″ Teflon® lined chrome moly rod ends
• Teflon® lined spherical ball LCA bearings
• Grade 8 bolts, flanged locking Jet nuts, & 3AN washers

Hyperco Springs (Blue) or Eibach Springs (Red or Silver)
• Chrome silicone steel
• Powder coated for corrosion resistance
• Choice of spring rate

Spring Manufacturer Dependent on Availability
If manufacturer or color is important, please specify
Not all rates are available in all three colors

Spring Seat Bearing Kit – S1409
• Allows smooth height adjustment
• Eliminates spring bind during turns

Strange 2 Piston Caliper Brake Kit – B4453WC / B4454WC
• One piece forged slotted steel rotors
• Two piston billet aluminum calipers
• Soft metallic brake pads
• Billet aluminum caliper mounts
• Billet aluminum hubs with lightening holes
• Choice of 4 1/2″ or 4 3/4″ bolt pattern
• Timken bearings and races
• Oil seals
• 1/2″ -20 screw-in wheel studs
• All necessary mounting hardware
