Strange offers a variety of pinion supports for 9” ford cases. Strange's line of forged aluminum Drag Racing supports can accommodate 28 spline or 35 spline pinions and are available in both tapered and ball bearing configurations. The Strange pinion support forging offers optimal grain structure and provides superior strength when compared to random grain flow pinion supports. These supports accept larger than stock front and rear pinion bearings allowing for a tremendous increase in thrust capacity. The all new Strange forged aluminum Daytona support (N1917) offers a the best of both worlds by featuring superior oiling channels for extending bearing life, lightweight aluminum construction and the rigidity to withstand the most demanding of applications.

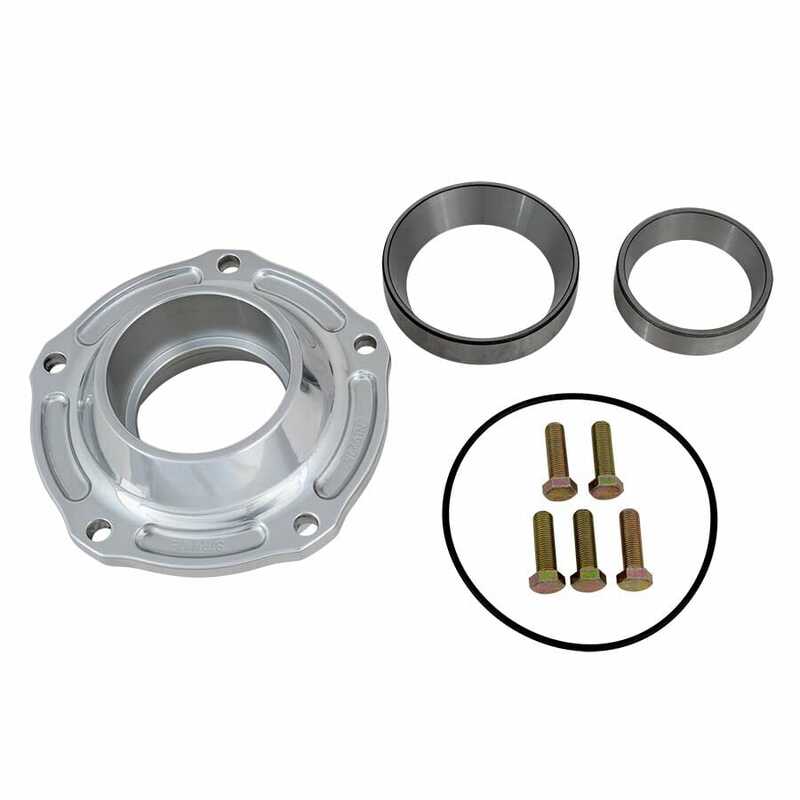

Part Number: N1922

Application
Drag Race Use Only

For Street or Street & Strip – See N1917

Features
Billet aluminum body
Clear anodized finish
Machined for oversized races
Ability to accept either 28 or 35 spline pinion

Includes
Front & rear races installed – N1931 / N1939
O-ring – N1958A
Support bolts

Notes
Requires proper bearing kit and yoke or coupler
Bearing sizes exceed OEM Ford and Ford Daytona
OEM yokes will be .188″ to .313″ too long for pinion nut to fully engage threads



Related Components

For 28 Spline Pinion
Bearing kit…………………… N1923
Yokes… U2203HDA / U1603
Coupler……………………….. U3627

For 35 Spline Pinion
Bearing kit…………….. N1924
Yokes………. U1604 / U1634
Coupler…………………..U3629
