Modular aluminum housing with caliper mounts only. (Third member, 40 spline axles, brakes or 4 link plates not included)

 Designed Specifically For Drag Racing

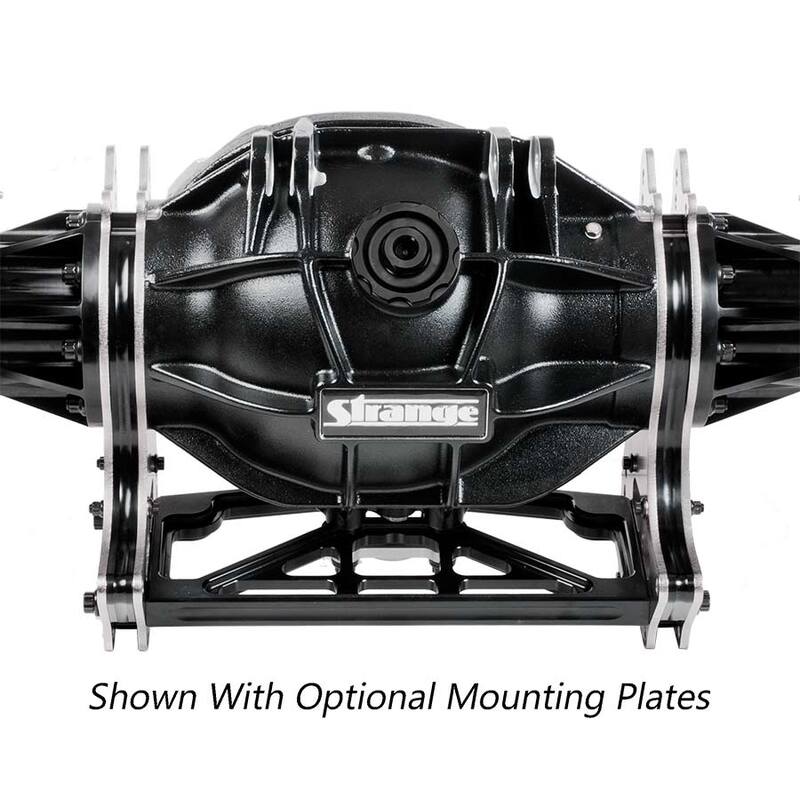

Strange Ultra 4-Link Modular Housing With Caliper Mounts
• Centered Pinion
• Caliper mounts are for Strange 2 piece axles – P1020
• Specify if using steel or carbon brakes
• Choice of 4-link centers & WTW width

4-Link Centers Affect Wheel to Wheel Width
Outside face of rotor hat to rotor hat using .250″ thick hats
Subtract .500″ from below for bare axle flange to axle flange width

16″ Centers              17″ Centers
31.50″ or 32.50″       32.50″ or 33.50″

18″ Centers              19″ Centers
33.50″ or 34.50″       34.50″ or 35.50″

20″ Centers              21″ Centers
35.50″ or 36.50″       36.50″ or 37.50″

22″ Centers              23″ Centers
37.50″ or 38.50″       38.50″ or 39.50″

Housing
• 206-T4 cast aluminum
• Hot Isostatic Pressed to ensure casting integrity
• Black Enduraguard® finish
• Large fill cap allows for gear inspection

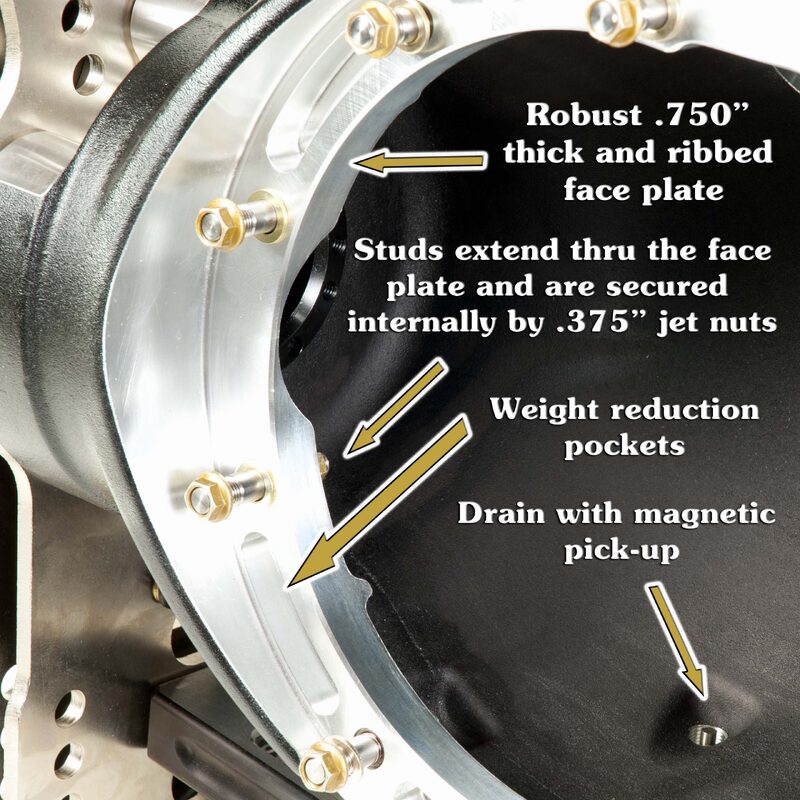

• Magnetic drain plug
• Lug design prevents plate & tube rotation
• Integral upper wheelie bar mounts
• Clearance for 9″, 9 1/2″ & 10″ gear sets
• Designed & machined by Strange
• Cast in USA

Four Link Spacer Plates
• 6061-T6511 billet aluminum
• Pockets engage housing lugs
• Lightened for weight reduction
• O-rings ensure sealing integrity
• Black anodized

Bottom Four Link Brace
• 6061-T6511 billet aluminum
• Eliminates lower 4 link plate welding
• Lightened for weight reduction
• Black anodized finish

Plates, Axles, Brakes, & Center Section Sold Separately

4-Link Plate Option
Standard – OPRH40
Heavy duty – OPRH44

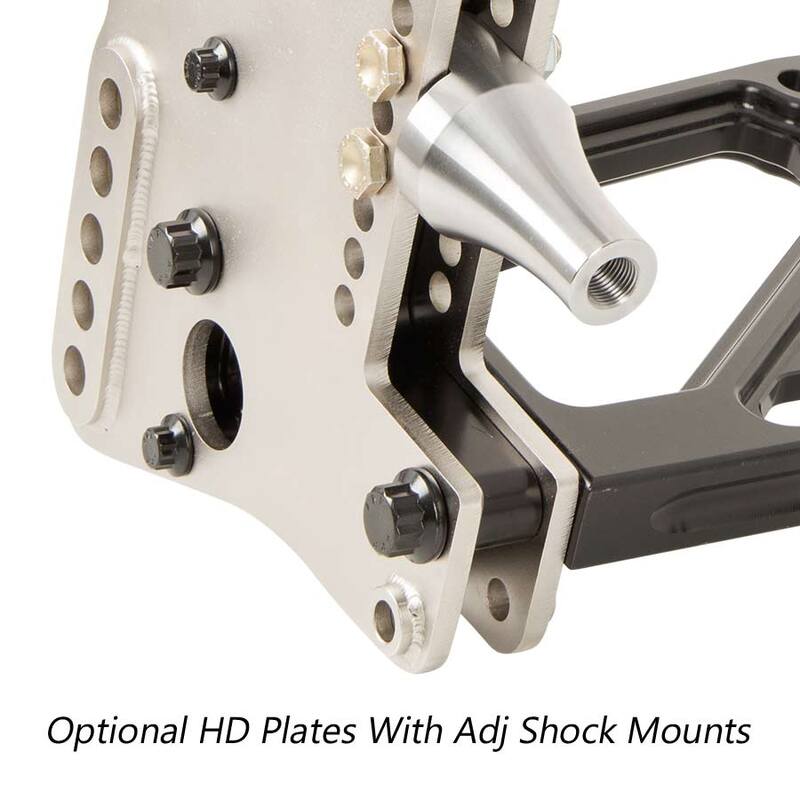

Heavy duty with adjustable shock mounts – OPRH45

Related
Housing, axles & steel brakes – H1192
Housing, axles & carbon brakes – H1190

HD Pro center section – PRF192
Ultra case center section – PRF225
Billet case center section – PRF425


This product is only available from an Authorized Strange Dealer or Factory Direct Call - 800-646-6718 or Email Us
