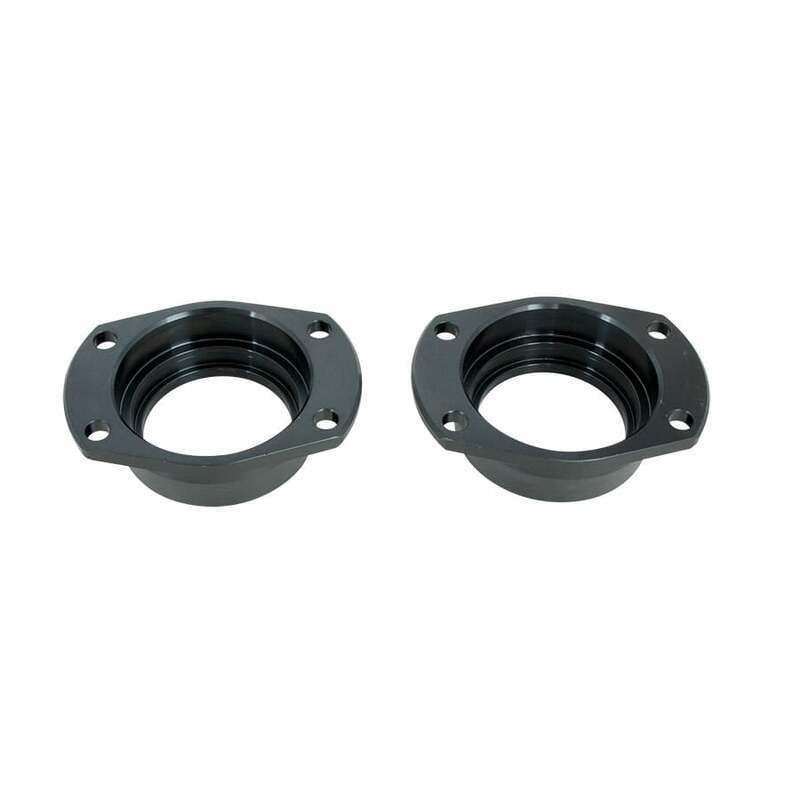

Whether you're narrowing a rear axle housing for bigger tires, or just building a new housing for your street car, you will need housing ends to complete the project. These Strange rear housing ends are offered in five popular styles, each CAD-designed to ensure a proper fit. They are forged from mild steel for ease of welding and then fully machined on CNC equipment.

Part Number: H1137

Description
Strange Housing Ends
Sold as pair

Requires
O-ring style ball bearings
or
Outer seal unit bearings

Features
• 8620 forged chrome moly steel
• Butt weld design
• For 3″ or 3 1/4″ OD tubing
• Black oxide finish
• Designed & machined by Strange
• Material forged in the USA

Dimensions
– 1.300″ total width
– 0.281″ wide flange
– 3.152″ ID x .680″ deep bearing bore
– 3.250″ OD / 2.515″ ID at tube end

Typical Axle Offset – 2.500″

Related Components
Retainer plate………….. A1018
Hsg end stud kit…. B1300HSTKIT

Axle Bearings
1.531″ ID………………….. A1020
1.562″ ID ball……………. A1021
1.562″ ID tapered…….. A1013
1.772″ ID………………….. A1019

Axle Packages
Alloy…………………………. P3102
With spool……………….. P3102S

Pro Race…………………… P1007
With spool………………… P2007

Pro Race 40………………. P1014
With spool………………… P2015
