Strange offers their rear axle housings in a variety of configurations, from just the center housing to complete, ready-to-bolt-in assemblies. Strange rear axle housings are designed and manufactured to be more rigid and stronger than OEM housings. Depending on the application, they are fabricated from proprietary nodular iron (substantially stronger than cast iron) and other quality materials, fixture-welded to ensure proper alignment, slotted for full tube engagement, and reinforced at critical areas to reduce center section and axle tube flex. Whether your car is headed for the street, the track, or the drag strip, customize your car's rear-end with a Strange rear axle housing so it will meet or exceed your expectations.

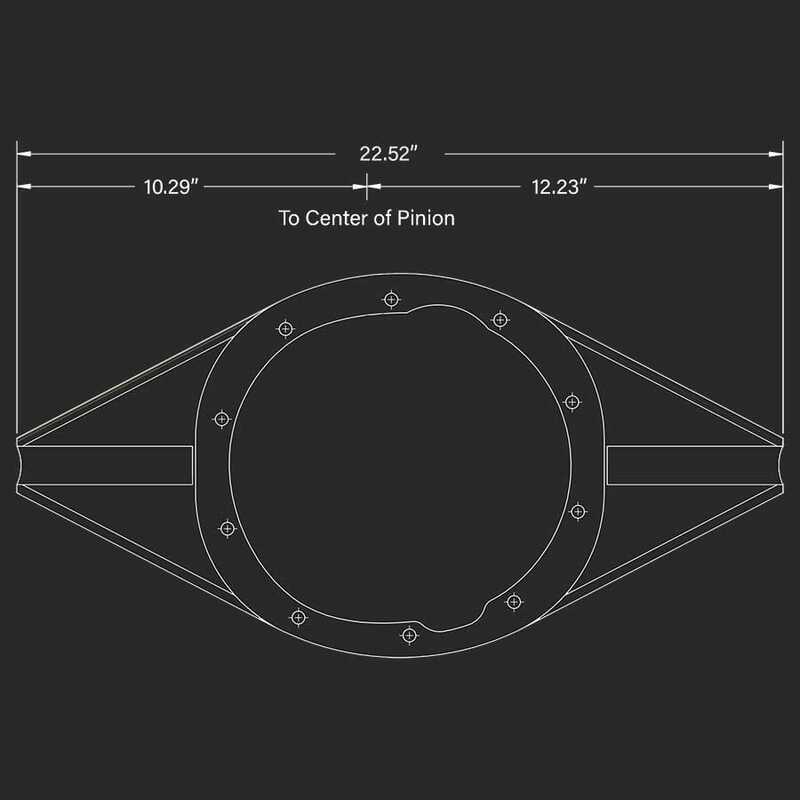

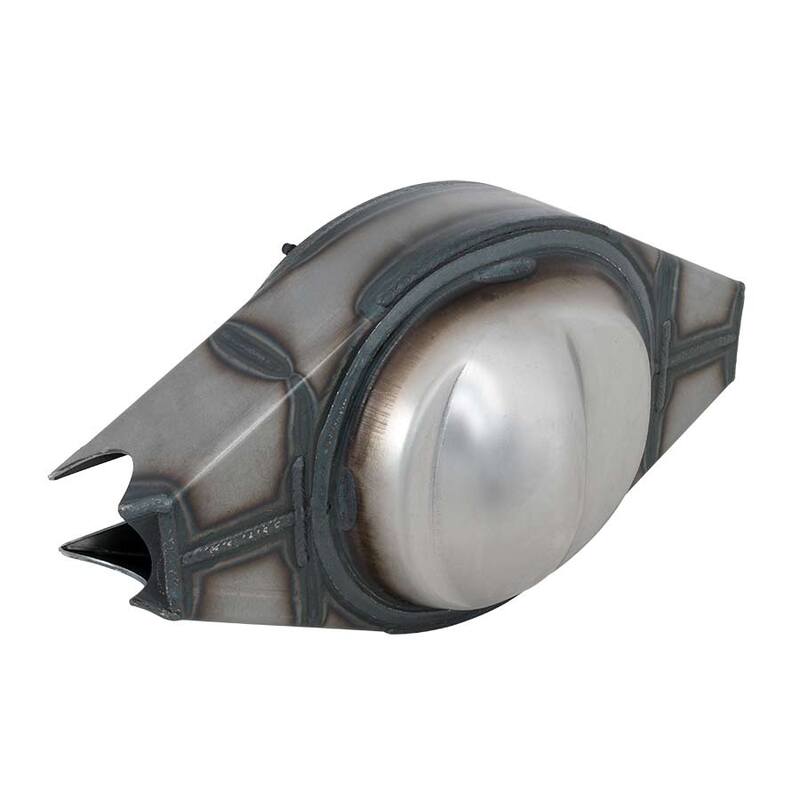

art Number: H1110

Application
Foundation for Ford 9″ housing fabrication
Designed to accept 3″ OD axle tubing

For 3 1/4″ tubing – See H1112
Constructed from .141″ mild steel
Heavy duty .282″ thick face plate
Internal gussets provide rigidity and support axle tubes

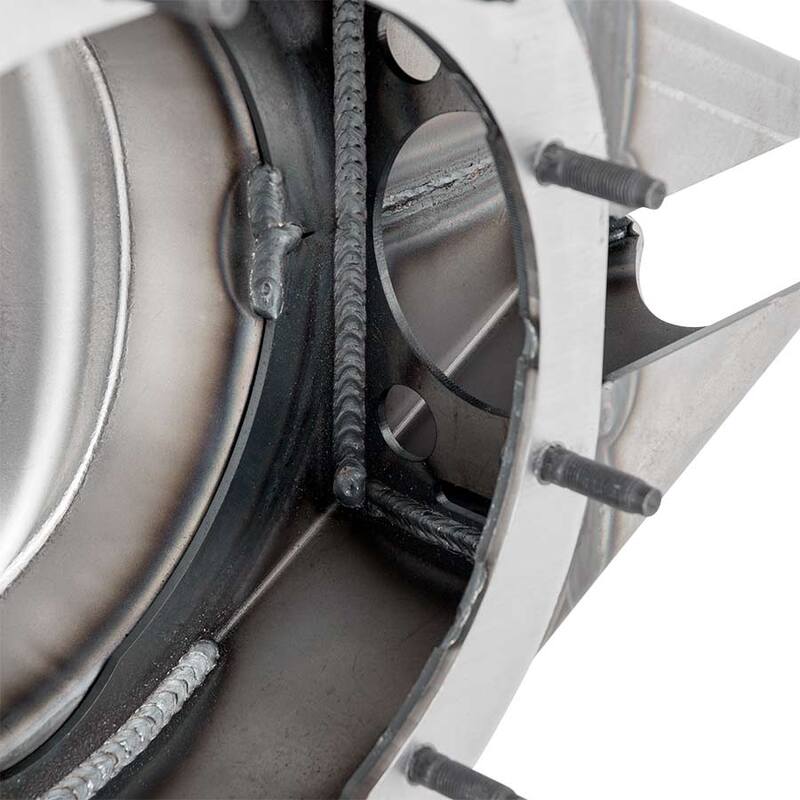

Slots allow exceptional weld contact of housing to tubes
Extended cover allows clearance for 9″ and 9 1/2″ gear sets

Related Components
3″ OD tubing………. H1139

Housing Ends
Late Big Ford……… H1137
Big Ford……………… H1135
Small Ford………….. H1134
Mustang…………….. H1138

Small GM…….. H1143 / H1144
Olds…………….. H1132 / H1142

Mopar…………. H1133 / H1147

Symmetrical… H1131 / H1136
