Aluminum Adapter Flange Yokes- Holden Commodore VE-VF, VF LSA

Fits 6L80, 6L90, 8L90, 10L80 units, TR6060, TR3160 manual units.



The ideal upgrade for modified performance vehicles, Sonnax 3-bolt adapter flange yoke kit T35-GMFD-01K makes it easy to convert a two-piece driveline to a one-piece, U-joint-style driveline. Combined with Sonnax tubing and weld yokes, this unique flange dramatically increases strength and durability while reducing future maintenance costs.



  • Eliminates the troublesome giubo (sometimes misspelled as guibo) and/or CV joint(s)
  • Great for drivetrain swaps and retrofits in custom applications such as street rods and hot rods
  • Manufactured from 6061-T6 aluminum
  • Precision-machined for excellent fit and balance

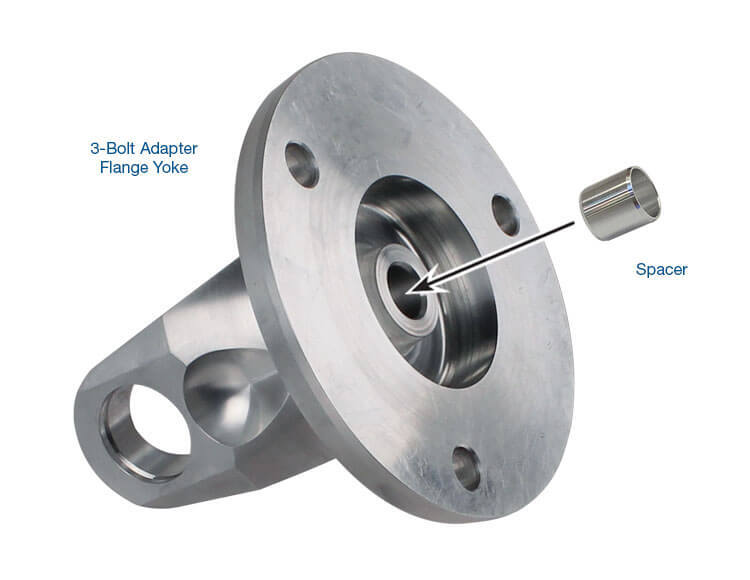

  • Spacer included for 8L90 & 10L80 transmissions; see instructions

T35-GMFD-01K is a custom part and may fit more models than noted above. Measure pinion and output flange bolt holes and bolt circle diameter to determine if this yoke is appropriate for your build.

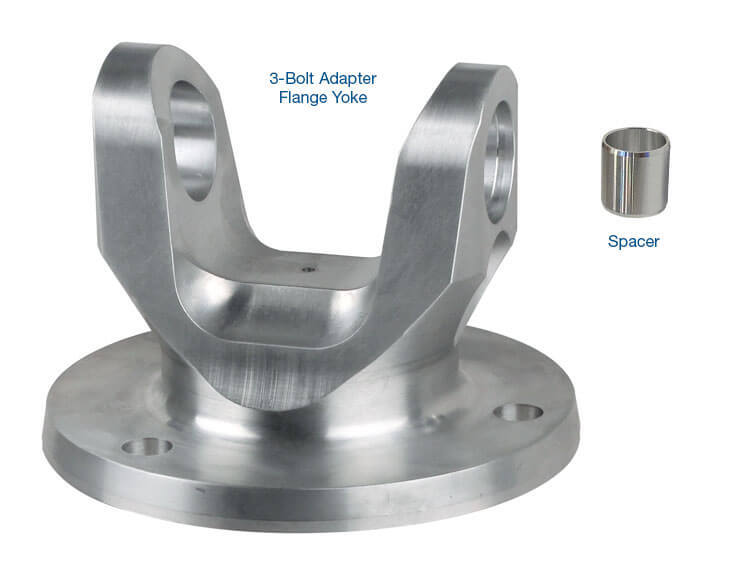

  • 3-Bolt Adapter Flange Yoke
  • Spacer 8L90 & 10L80 Only

  • U-Joint Series: 1350
  • Pilot Type: F
  • Material: 6061-T6
  • Bolt Hole Dia.: 0.500"
  • Flange Face to Centerline: 3.000"
  • Weight: 1.980lbs
  • Flange Outer Dia.: 5.450"
  • Pilot Dia.: 0.631"
  • Bolt Count: 3
  • Bolt Circle Dia.: 110mm
