Vehicles with GM 200-4R and 4L60 transmissions often have problems with poor Reverse boost or upshifts in manual low. These are generally caused by a worn Reverse boost valve sleeve or wear at the pump body. Sonnax offers a larger ratio (.283") Reverse boost valve kit K77898 to restore the hydraulic integrity of the assembly.
Due to the differences in the thermal expansion rate of steel and aluminum when the transmission approaches operating temperature, the sleeve has been allowed excessive clearance and scrubs the bore.

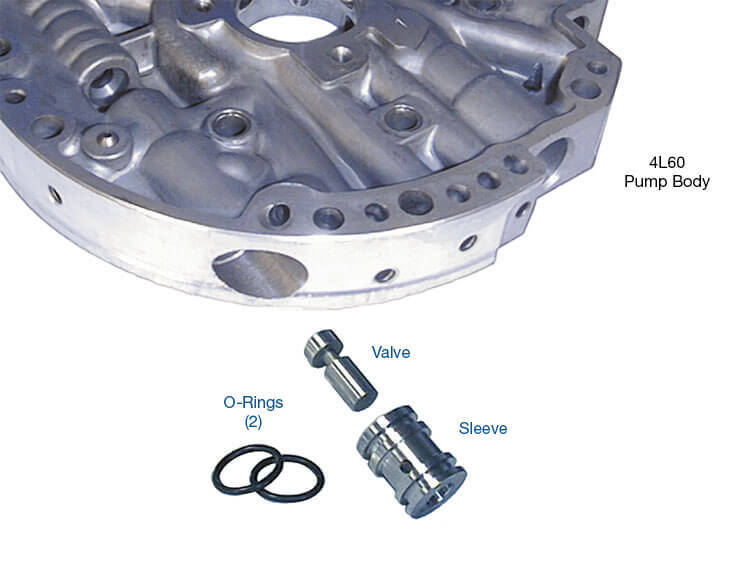

Sleeve O-rings seal the Reverse boost circuit and prevent leakage from the pump body bore
Sleeve and valve are made from hardened steel for increased wear resistance
Sleeve lands have been lengthened to add better sealing and stabilizing capabilities to prevent bore wear
Reverse boost valve spool lands have been lengthened to aid in maintaining hydraulic integrity
Drop-in Zip Valve™ parts install quickly and easily

Learn More About Zip Valve™ Drop-In Repairs
