An overheated converter, TCC codes, and/or poor cooler flow are common problems in Honda vehicles equipped with five-speed automatic transmissions. These conditions can be caused by a worn or sticking TC check valve.
The TC check valve ensures converter pressure does not become excessive during TCC apply, release, or partial apply. Repeated stroking of the valve can create casting wear areas over time. Depending upon the specific Honda application, this valve can stroke in one casting or multiple castings that are stacked together. The valve can stick on the ledges of these wear areas or at the edges of the stacked castings.
If the TC check valve sticks in the open position, converter pressure will be reduced. If stuck in the closed position, excess converter pressure can result. Depending upon the wear in the casting bore, the valve may leak, reducing converter pressure or may be prevented from stroking when necessary to reduce excess converter pressure.

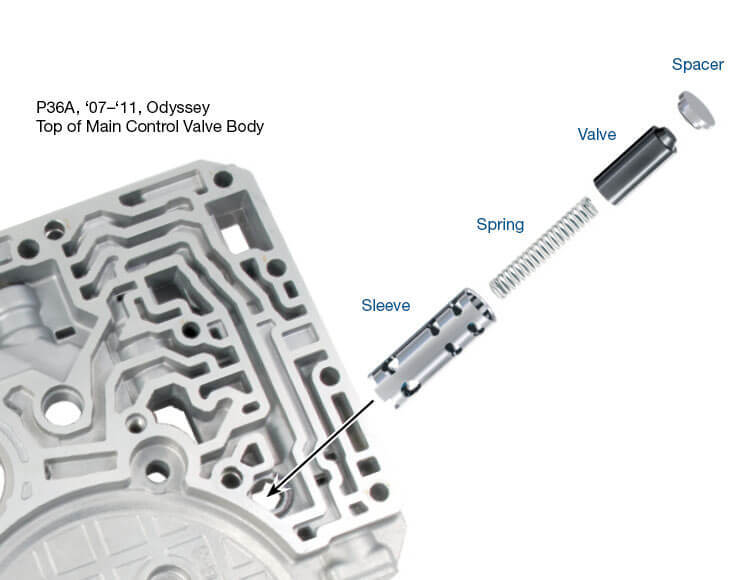

Replacing the OE TC check valve with Sonnax TC check valve kit 98892-10K restores correct torque converter pressure and prevents valve hang-up.

Sleeve eliminates ledges that cause valve hang-up
Sleeve manufactured from highly wear-resistant aluminum
Salvages OE valve bodies machined with an edge remaining at the relief ports
Drop-in Zip Valve™ parts install quickly and easily


Honda 5-Speed 98892-10K Application Chart

Make
Model
Years
Trans Code.

From
To


Acura
MDX
2003
2004
MDKA

Acura
MDX
2005
2006
BDKA

Acura
MDX
2007
2011
BYFA

Acura
RDX
2007
2011
BWEA

Acura
RL
2005
2011
MJBA

Acura
TL Type S
2007
2008
BDHA

Acura
TL Type S
2009
2011
BK3A

Acura
TL Type S
2009
2011
BK4A

Acura
TSX
2010
2011
MM2A

Honda
Accord
2008
2011
B97A

Honda
Accord
2010
2010
P79A

Honda
Accord Hybrid
2005
2007
MURA

Honda
Crosstour
2010
2011
BBSA

Honda
Crosstour
2010
2011
BBTA

Honda
Odyssey
2007
2011
B36A

Honda
Odyssey
2007
2011
P36A

Honda
Pilot
2003
2007
BVLA

Honda
Pilot
2003
2007
PVLA

Honda
Pilot
2003
2007
PVGA

Honda
Pilot
2006
2007
BVGA

Honda
Pilot
2008
2008
P34A

Honda
Pilot
2008
2008
P35A

Honda
Pilot
2009
2011
PN3A

Honda
Pilot
2009
2011
PN4A

Honda
Ridgeline
2006
2008
BJFA

Honda
Ridgeline
2006
2008
MJFA

Honda
Ridgeline
2009
2011
PSFA

Saturn
Vue
2004
2007
MDPA

Saturn
Vue
2004
2007
MDRA


In addition to the application chart, the OE spring must match one of the following specifications:


Match 1 of these OE Spring Specs

Wire Dia.
Outer Dia.
Free Length
Total Coils


.043"
.339"
1.35"
12.1

043"
.339"
1.38"
14.6

.043"
.332"
1.38"
14.5


Learn More About Zip Valve™ Drop-In Repairs
