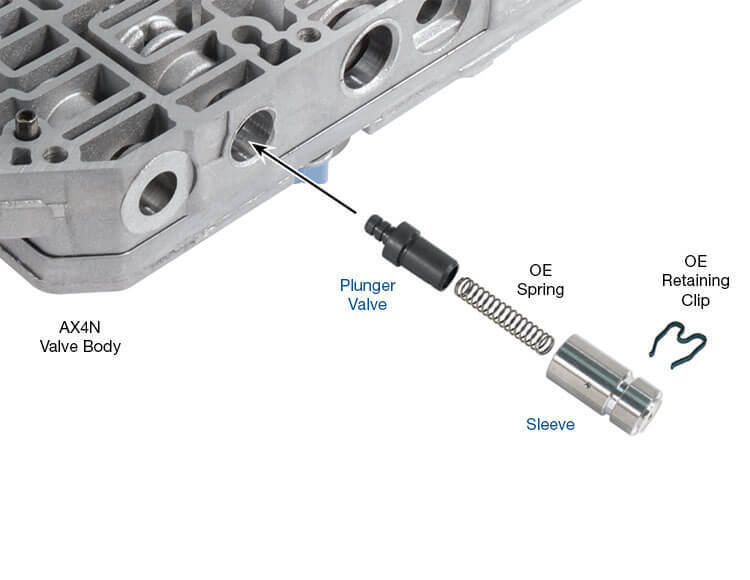

Vehicles with Ford AX4N, 4F50N transmissions frequently have excessive cooler circuit loss as well as torque converter clutch apply and release problems. These complaints can be caused by severe wear of the bypass clutch control sleeve, allowing regulated converter charge and cooler circuit oil leakage. This oil is fed to the lube circuits, cooler, TCC and into the sleeve to help maintain the TCC in the release position. If the sleeve is worn, oil will exhaust past the plunger valve to the sump, thus compromising the balance, but more importantly, leaking critical cooler oil. Sonnax has developed two tightly toleranced bypass clutch control plunger valve kits, 96206-03K and 96206-13K, to eliminate these problems.

Precision sleeves are manufactured from highly wear-resistant aluminum
Hardcoat anodized aluminum valve combats premature wear
Drop-in Zip Valve™ parts install quickly and easily

Learn More About Zip Valve™ Drop-In Repairs
