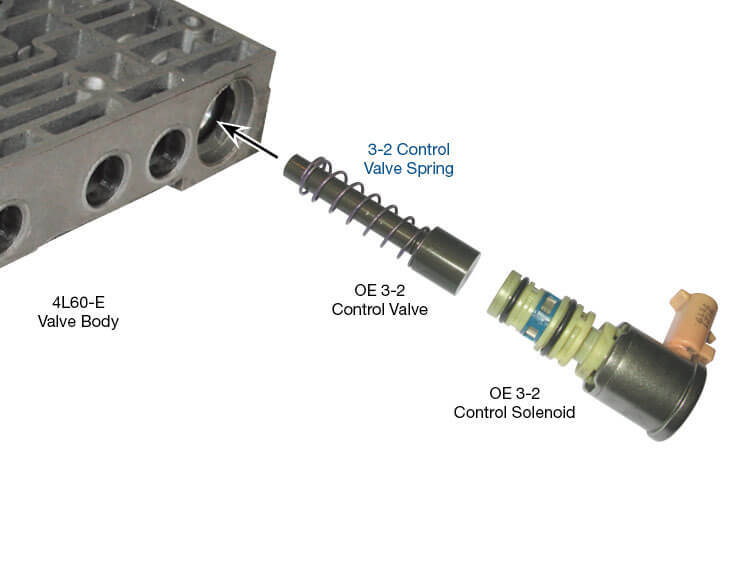

The 3-2 control valve spring in late-model GM 4L60-E, 4L65-E and 4L70-E valve bodies often breaks, and can cause a 3-2 bind and/or 2-4 band to overheat. This spring is often found to be broken during valve body service, and OE replacements are not available. Sonnax 3-2 control valve spring 77754-23 salvages the valve body and prevents 3-2 bind and/or 2-4 band overheat.

Inexpensive replacement for unavailable OE spring
Salvages valve body core
