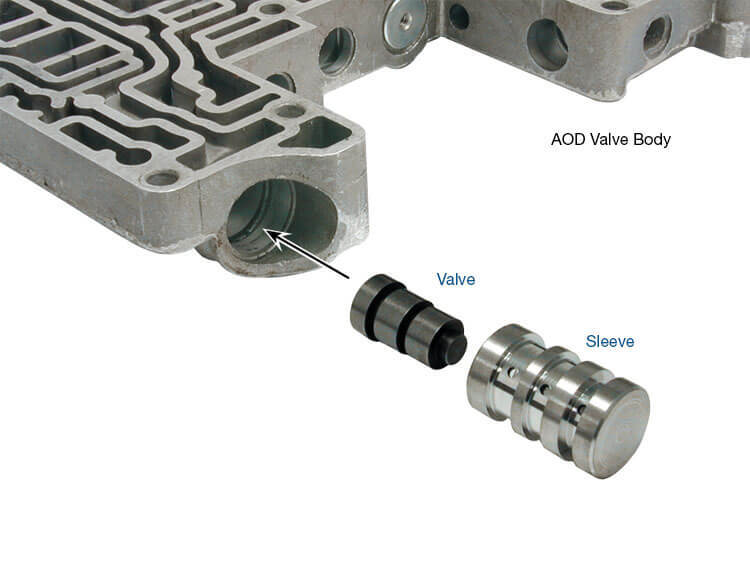

When rebuilding high performance or heavy-duty Ford AOD units, many rebuilders wish to increase line rise over the OE specifications. This is now easily accomplished by installing Sonnax large ratio boost valve kit 76990-04K. Not only will our sleeve and valve kit address poor line rise, direct clutch failure and soft slide shift complaints due to the OE sleeve being worn, but is now available in a larger boost ratio.

Large ratio boost sleeve is made from a highly wear-resistant aluminum and comes without O-rings for ease of installation
Steel valve has been tightly toleranced for minimal leakage and extended life
Drop-in Zip Valve™ parts install quickly and easily


Boost Valve Ratios


Part Numbers
Ratios
Great for these Applications

76990K & 76990-03K
.545" Spool Standard Ratio
Standard OE

76990-04K
.553" Spool Large Ratio
Large Ratio OE & High Performance


Learn More About Zip Valve™ Drop-In Repairs
