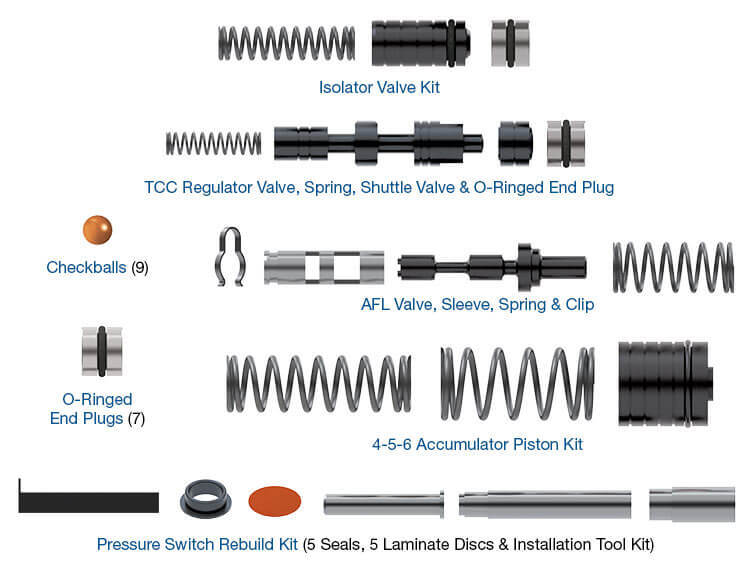

Sonnax Zip Kit 6T70-ZIP targets the root cause of multiple concerns by sealing critical circuit pressure losses in GM Gen. 1 6T70/75 valve bodies. The kit contains uniquely-designed parts to prevent the loss of pressures within the main line, clutch apply control, actuator feed and lockup control circuits. The kit also seals multiple circuits known to suffer from end plug leakage or poor checkball sealing. No separate special tools are required for installing these parts.
Replacement pressure switch seals and laminate discs in this Zip Kit address various trouble codes related to failures of fluid pressure switches internal to the transmission electro-hydraulic control module (TEHCM). The installation tools included in this kit allow rebuilders to perform switch repairs quickly, easily and safely.
The Zip Kit quick guide provides clear and easy instructions on one sheet to get the unit sealed up and back on the road quickly. In addition to general rebuilding tips and technical information, the technical booklet included in this kit contains vacuum testing information and locations at other key areas of the valve body.

Drop-in Zip Valve™ parts install quickly and easily, no reaming or special tools required
Uniquely designed parts address root causes of valve body concerns by sealing critical pressure circuits
Detailed technical booklet included with in-depth rebuild and inspection tips for comprehensive valve body repair
Allows salvage of expensive TEHCM

Learn More About Zip Valve™ Drop-In Repairs
