Some common complaints associated with Ford 5R55W and 5R55S are high TCC slip RPMs under increasing loads, slip codes and converter apply or release concerns. These complaints are often caused by wear at the ID of the TCC modulator plunger valve sleeve, due to constant oscillation by the pulse width modulated TCC solenoid. This plunger valve positions the TCC modulator valve, which feeds line to the apply circuit, which controls slip rate. Wear of the sleeve will allow the TCC slip rate to continue to rise, and could prevent full lockup. Another path for hydraulic leakage can be created by the OE retaining clips raising a burr on the TCC modulator sleeve, which gouges the casting bore during disassembly.

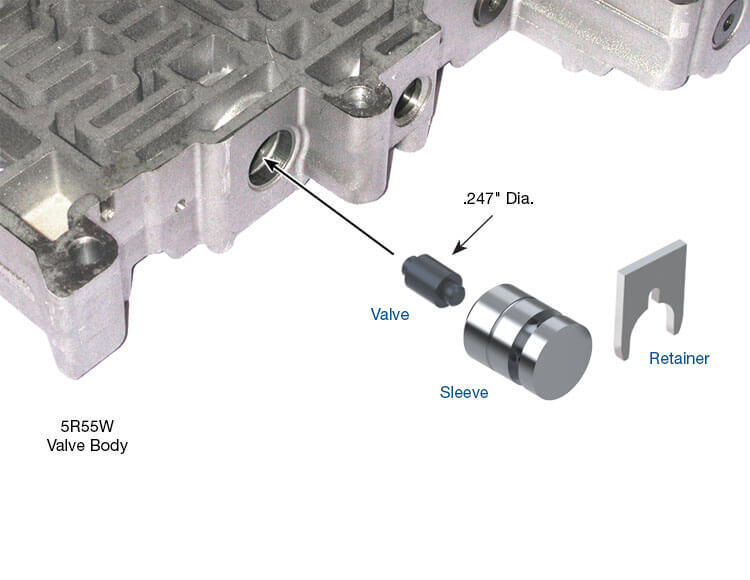

Sonnax oversized TCC modulator plunger valve kit 56947J-82K restores hydraulic integrity to the TCC solenoid circuit with precisely toleranced parts. A new design retaining clip prevents future burr creation on the sleeve that results in valve casting damage and leakage during disassembly.

OE stock ratio restores original lockup feel
Hardcoat anodized aluminum valve combats premature wear
High-grade aluminum sleeves are extremely wear-resistant
New design retainer eliminates burr creation
