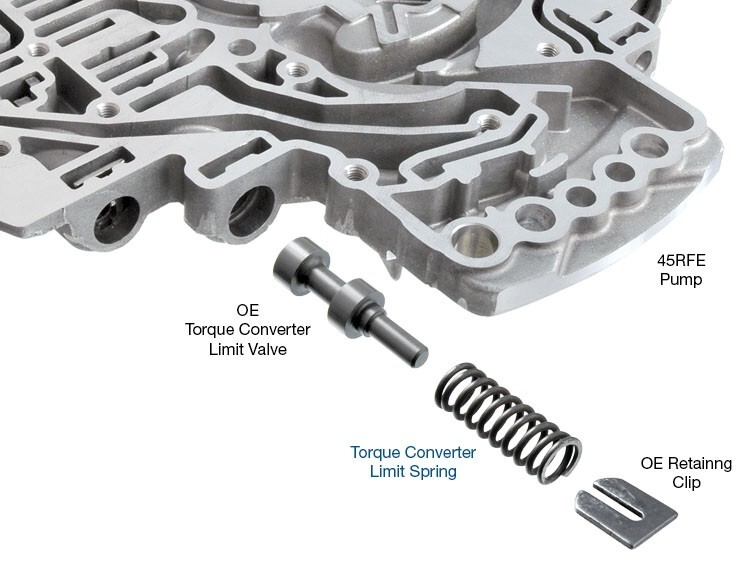

The torque converter limit valve spring in the Chrysler 45RFE, 545RFE, 65RFE, 66RFE and 68RFE pump often breaks and is not serviced separately from OEM. This valve limits converter release pressure. A broken spring can cause the valve to become stuck and result in converter clutch release complaints. The improved design and high-quality material of Sonnax torque converter limit spring 44912-02 provides high allowable working stresses, preventing fatigue and breakage. Sonnax modifications to the spring design ensure that the critical operating load falls within the recommended design heights to maintain limiting pressure consistency and that the spring will accurately limit converter release pressure to 115–125 psi.

More From This Category

MANLEY Valve Lock, 10 Degree Machined, Conventional, Titanium, +.050 .3110 in. Stem, Set of 16

MANLEY Valve Lock, 10 Degree Machined, Conventional, Titanium, +.050 .3110 in. Stem, Set of 16

$413.60

COMP Cams Conical Valve Spring Kit GM LS w/ Tool Steel Retainers

COMP Cams Conical Valve Spring Kit GM LS w/ Tool Steel Retainers

$1,321.85

COMP Cams Valve Seal, Metal Viton, .530 in. Guide Size, 5/16 Valve Stem, Set of 16

COMP Cams Valve Seal, Metal Viton, .530 in. Guide Size, 5/16 Valve Stem, Set of 16

$41.88

Trick Flow Valve Springs, PAC Racing, Triple, 1.645 in. Outside Diameter, 688 lbs./in. Rate, 1.130 in. Coil Bind, Set 16

Trick Flow Valve Springs, PAC Racing, Triple, 1.645 in. Outside Diameter, 688 lbs./in. Rate, 1.130 in. Coil Bind, Set 16

$948.30

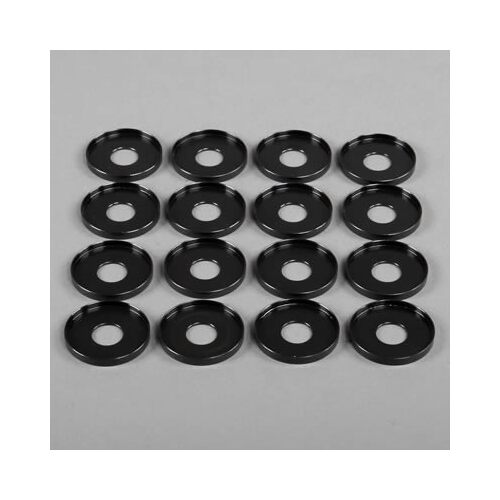

MANLEY Valve Spring Locator, Inside, Heat-Treated, Fits 1.58 in. OD. Spring, .567 in. ID, 1.57 in. OD, .045 in. Thick, Black, Each

MANLEY Valve Spring Locator, Inside, Heat-Treated, Fits 1.58 in. OD. Spring, .567 in. ID, 1.57 in. OD, .045 in. Thick, Black, Each

$13.39

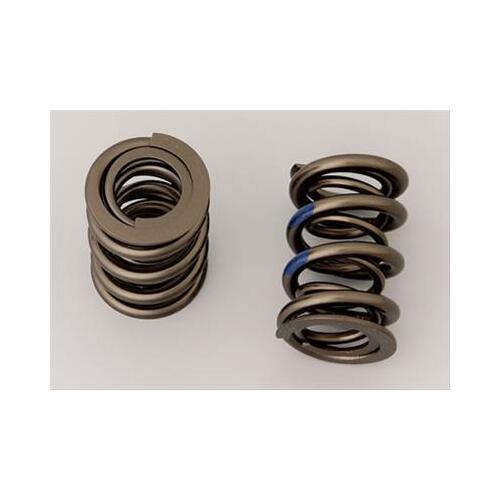

MANLEY Valve Spring, Professional, Chrome Silicon, 1.550 in. OD, 458 lbs./in. Rate, 1.180 in. Coil Bind Height, Dual, Set of 16
