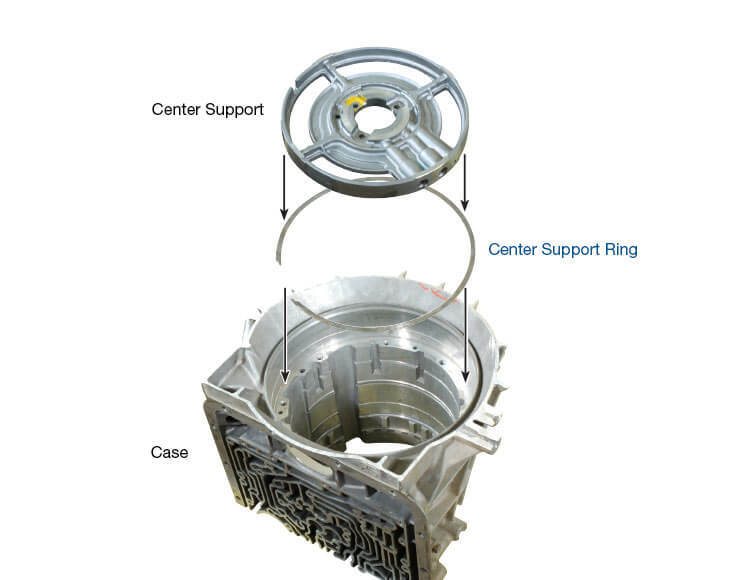

In Ford 4R100 and E4OD units, movement between the center support and case causes wear on the rear of the center support where it contacts the case lugs and requires center support replacement. The steel Sonnax support ring installs between the case lugs and center support, giving more contact area with the center support and eliminating future wear. Since the .048-.051" thickness of the steel ring needs to be machined off of the rear of the center support, this allows worn supports to be salvaged and reused.

Increased contact area at both center support and case reduces wear
Salvages worn center support
Keeps center support in alignment
Minimizes drum wear at the support
