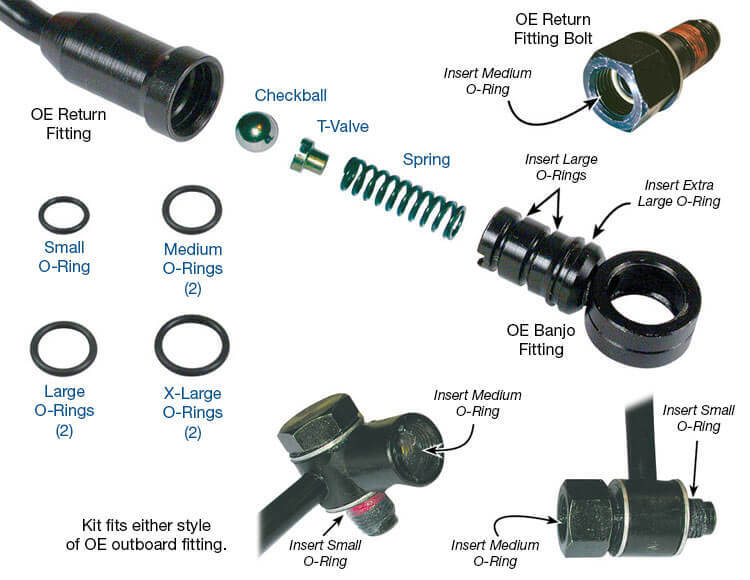

Sticking of bypass components, spring relaxation or poor ball seat in Ford 4R100 and E4OD units will allow the bypass to open at lower cracking pressure. This reduces TCC apply pressure, cooler flow at the overdrive section and radiator flow responsible for heat transfer. Sonnax cooler bypass valve kit 36605-02K allows the bypass valve assembly to be rebuilt, salvaging the OE fittings and maintains cracking pressure at 70-75 psi.

Hardened steel T-valve provides secure checkball seat and adequate bypass flow
New spring cracks open at 70–75 psi to provide lube if cooler is blocked or restricted
Hardened alloy steel checkball resists damage
Seven new O-rings provide positive seal for cooler circuit
Drop-in Zip Valve™ parts install quickly and easily

Learn More About Zip Valve™ Drop-In Repairs
