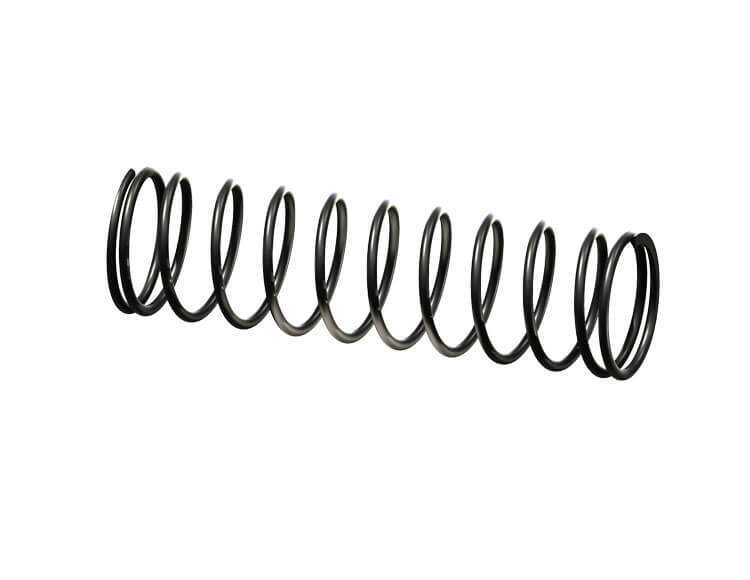

The OE springs in many Ford transmissions wear or become fatigued, causing low baseline pressure. OE replacements are hard to find, and many aftermarket springs have unacceptably high spring rates. The Sonnax elevated pressure main pressure regulator springs are intended to provide a minimal baseline pressure increase (approximately 10 psi over OE baseline pressure), enough of an increase to help restore full line pressure. The springs may be used to replace worn OE springs and also to correct low line pressure caused by worn transmissions.

Highest quality spring material
Designed to gently exceed OE spring rates
Manufactured to tight tolerances
Drop-in installation requires no modification
Saves time looking through cores for replacement springs
