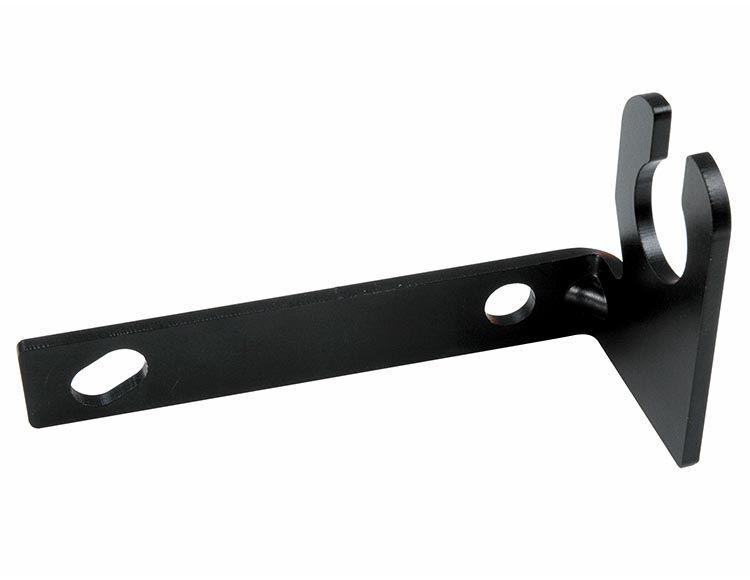

Transmission cases made in 1994 and 1995 have neutral safety switch mounting holes but do not have the top mount shifter bracket holes. Sonnax shift cable mount bracket 34913-01 allows installation of '94–95 transmissions or cases into '96–'97 vehicle that originally had case mounted shifter brackets. Additionally, if a late case has damaged or broken top mount bosses, the Sonnax bracket can be used as an alternative to correctly mount the shifter cable and allow reuse of the case.


Converts
To be used in


'94–'95 4L60-E Case
'96–'97 Vehicles

'94–'95 4L80-E Case
'96 Vehicles

Replaces OE bracket for units with broken bosses

4L60-E
Bracket Stamped 15995247
'96–'00 CK Truck

'96–'05 M/L Astro Van

4L80-E
Bracket Stamped 15995246
'96–'97 CK Truck
