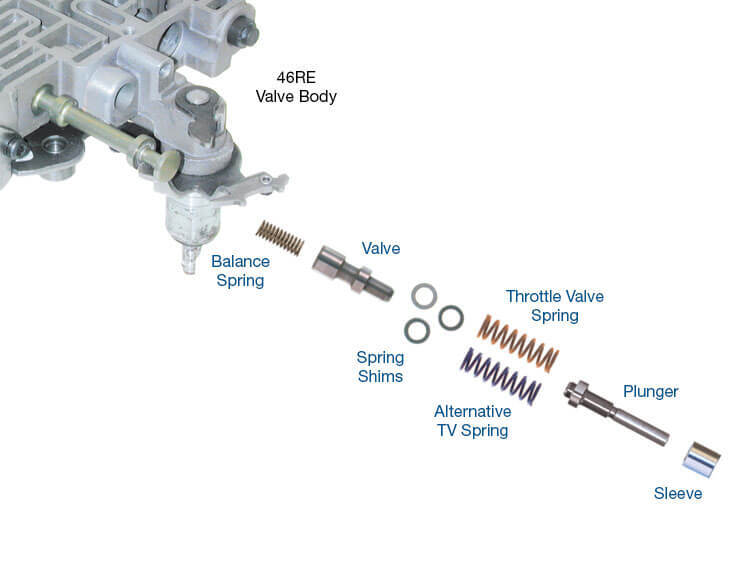

The TV bore wears out easily in listed Chrysler RWD transmissions, with the 48RE seeing much higher rates of poor line pressure rise and inconsistent shift timing compared to earlier units.Sonnax heavy duty throttle valve kit 22771-HDK3 is ideal for earlier, wide-open throttle shift points in new or lightly used valve bodies. The modified valve reduces gear hunting and the need to back off the throttle when shifting under heavy load. An optional balance spring improves throttle control if the bore shows minimal wear.

Restores and extends line pressure response and shift timing in new/lightly-used units
Hardened steel plunger and valve increase durability, especially in 48REs
Optional shims and TV spring for custom TV pressure adjustment and tuning
Drop-in Zip Valve™ parts install quickly and easily


Oversized Valve Kit 22771-04K
Fully restores throttle control in bores with moderate to severe wear. Requires tool kit F-22771-TL and the VB-FIX reaming fixture.

Heavy Duty Valve Kit 22771-HDK3
• Ideal for earlier, wide-open throttle shift points in new/lightly used valve bodies.
• Reduces gear hunting and the need to back off the throttle when shifting under heavy load.
• Optional balance spring improves throttle control if bore shows minimal wear.

Throttle Valve Kit 22771-03K
Basic durability enhancement with an optional balance spring to help revive throttle control in bores with minimal wear.


Learn More About Zip Valve™ Drop-In Repairs
