Vehicles with listed Chrysler units may have problems with slippage in Reverse, poor cooler charge at idle and high or low line control. These concerns are often due to excess wear at the line pressure plug and sleeve. When this sleeve and plug wears, leakage past the plug prevents the pressure regulator valve from properly controlling line pressure.

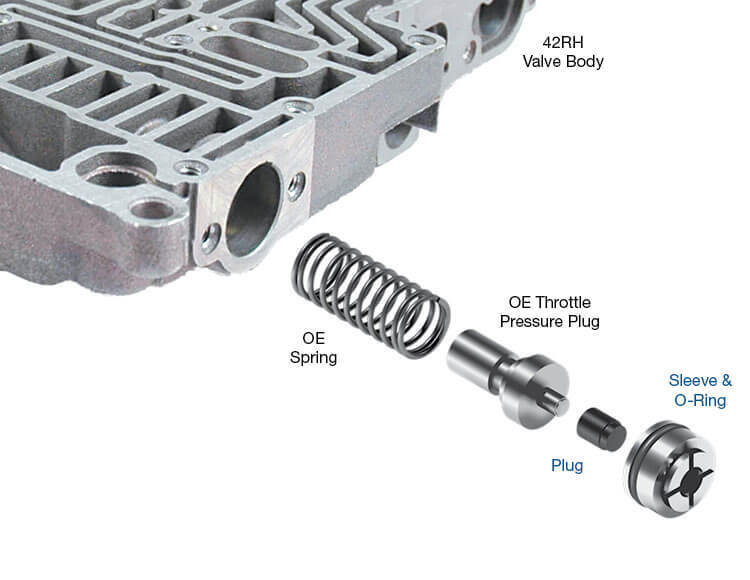

Sonnax line pressure plug and sleeve kit 22229-04K restores hydraulic integrity to the circuit, providing renewed line pressure control in all ranges.

Added O-ring prevents line pressure cross-leaks
Hardcoat anodized aluminum plug combats premature wear
Sleeve manufactured from highly wear-resistant aluminum
Drop-in Zip Valve™ parts install quickly and easily

Learn More About Zip Valve™ Drop-In Repairs
